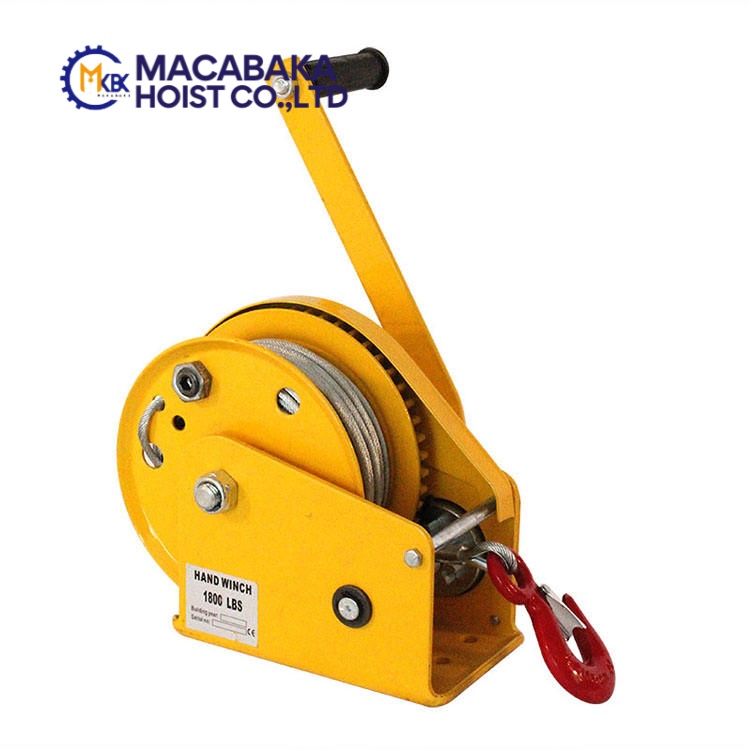

The Self-Locking Hand Winch is a reliable and easy-to-operate manual device designed for lifting and pulling loads safely. It is widely used in trailers, boats, warehouses, construction sites, and various industrial applications.
Equipped with a self-locking braking mechanism, the winch automatically holds the load in position when the handle is released, ensuring safe operation without slipping. Its compact structure, durable steel body, and high-strength gear system provide long service life and stable performance.
The hand winch is an ideal solution for situations where power supply is unavailable, offering efficient manual operation for pulling, lifting, and positioning loads.

Product Features

Self-Locking Mechanism

Automatically holds the load in place when the handle is released, ensuring maximum safety.

Durable Steel Construction

Heavy-duty steel body provides high strength and long service life.

Smooth Gear Transmission

Precision gear system ensures smooth operation and reduces effort during use.

Flexible Rope Options

Available with steel wire rope or polyester strap to meet different application needs.

Compact and Portable Design

Lightweight and easy to install, suitable for various working environments.

Wide Application Range

Ideal for pulling, lifting, towing, and positioning loads in different industries.

Model	Capacity (lbs)	Rope Length (m)	Gear Ratio	Net Weight (kg)	Packing Size (cm)
MKSW-1100	1100	8	3.1:1	2.5	22 × 15 × 14
MKSW-1800	1800	8	4.1:1	3.2	24 × 16 × 15
MKSW-2600	2600	10	4.1:1	4.5	26 × 18 × 16
MKSW-3500	3500	10	5.1:1	6.8	30 × 20 × 18
MKSW-5500	5500	10	5.1:1	8.5	34 × 22 × 20
MKSW-6600	6600	10	10:01	10.5	36 × 24 × 22

Q1: What is the advantage of a self-locking hand winch?

A: The self-locking mechanism automatically holds the load in position when the handle is released, ensuring safe operation.

Q2: What capacity range is available?

A: Our hand winches are available from 400lbs to 11023lbs.

Q3: What types of rope are available?

A: You can choose between steel wire rope or polyester webbing strap depending on your application.

Q4: What is the standard rope length?

A: The standard rope length is 8–30 meters, and customized lengths are available.

Q5: Do you support OEM service?

A: Yes, we provide OEM services, including custom logo, color, and packaging.

Q6: What are the common applications of this winch?

A: It is widely used for trailers, boats, warehouses, construction, and pulling or towing operations.
