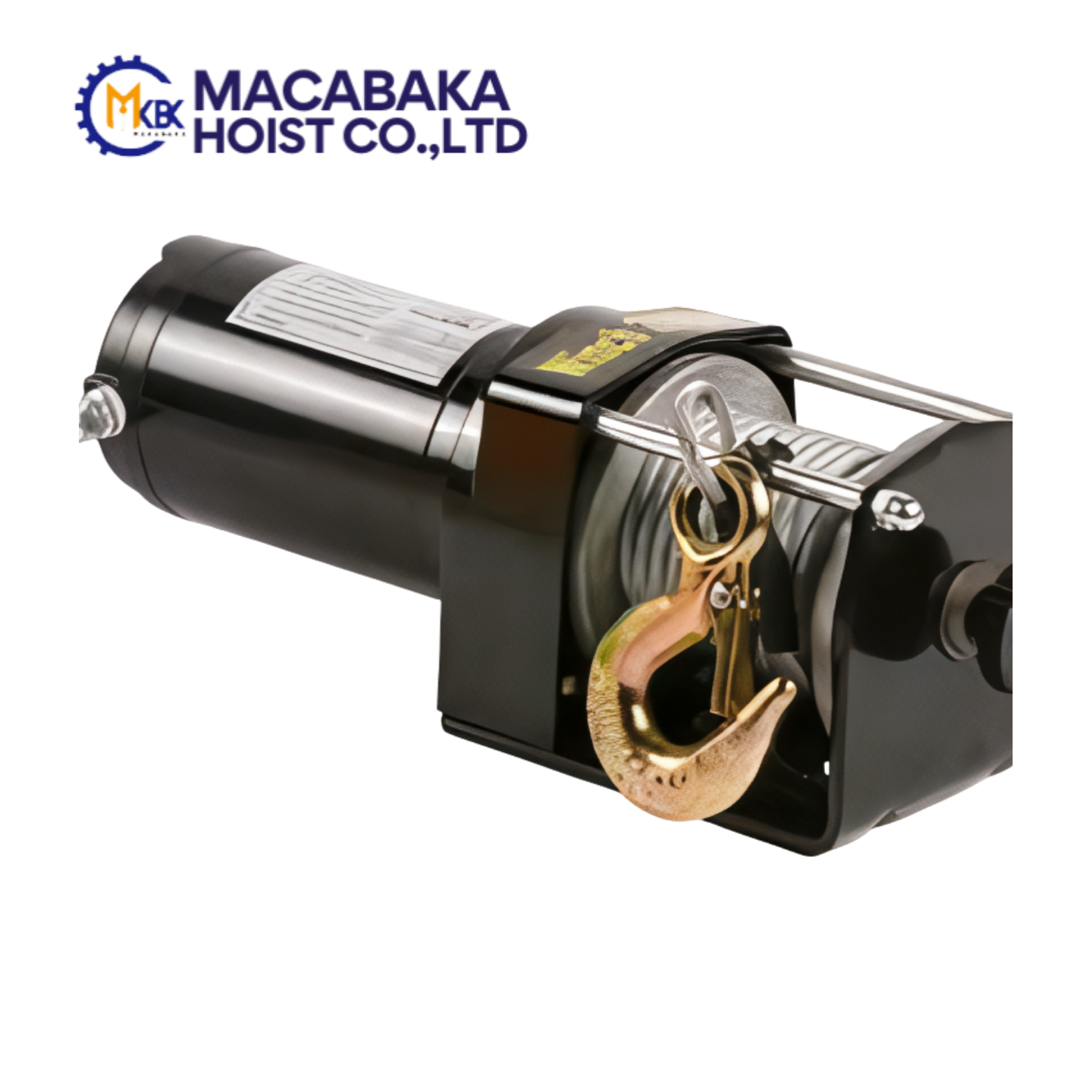

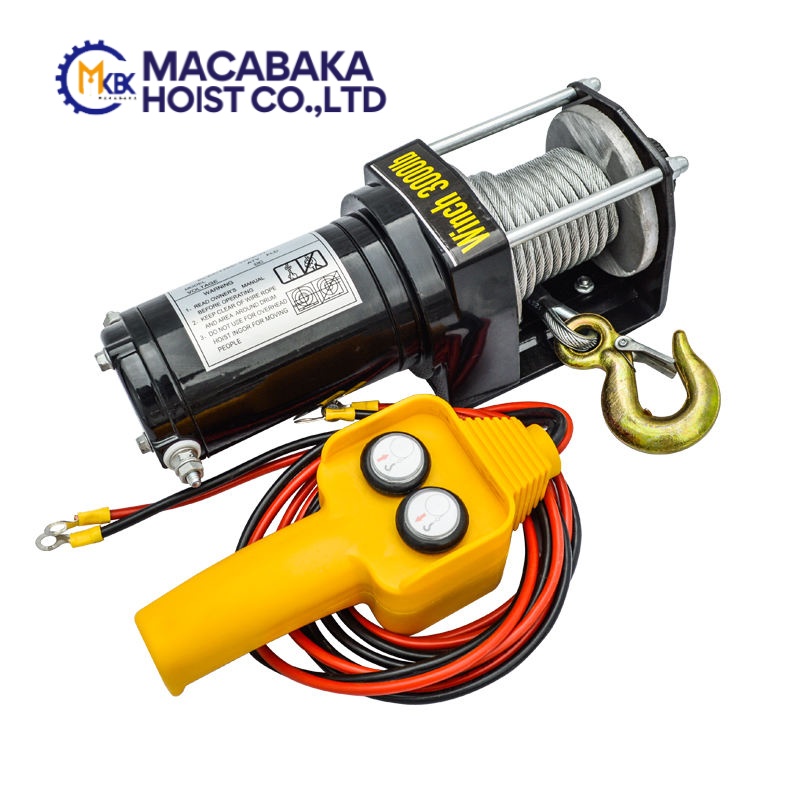

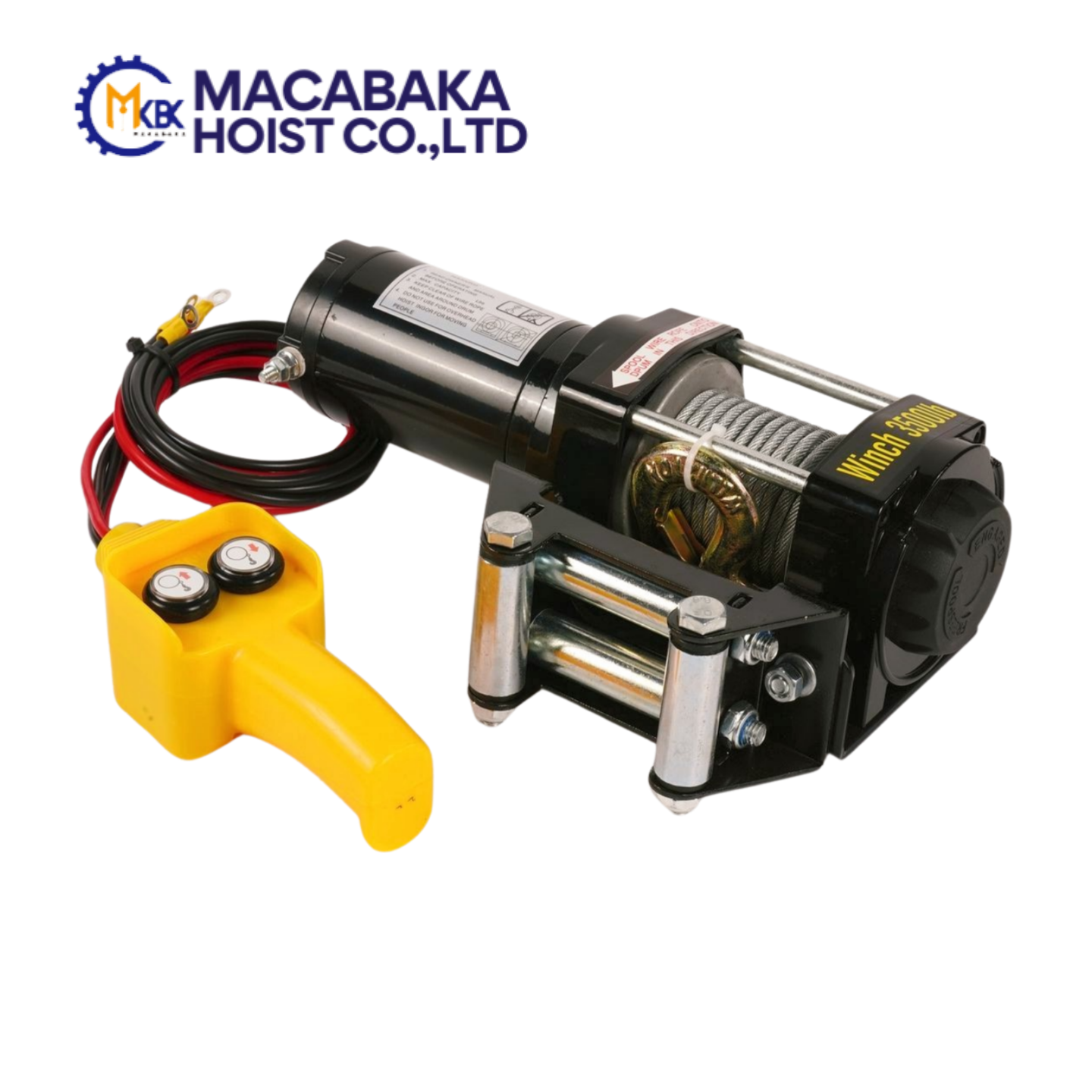

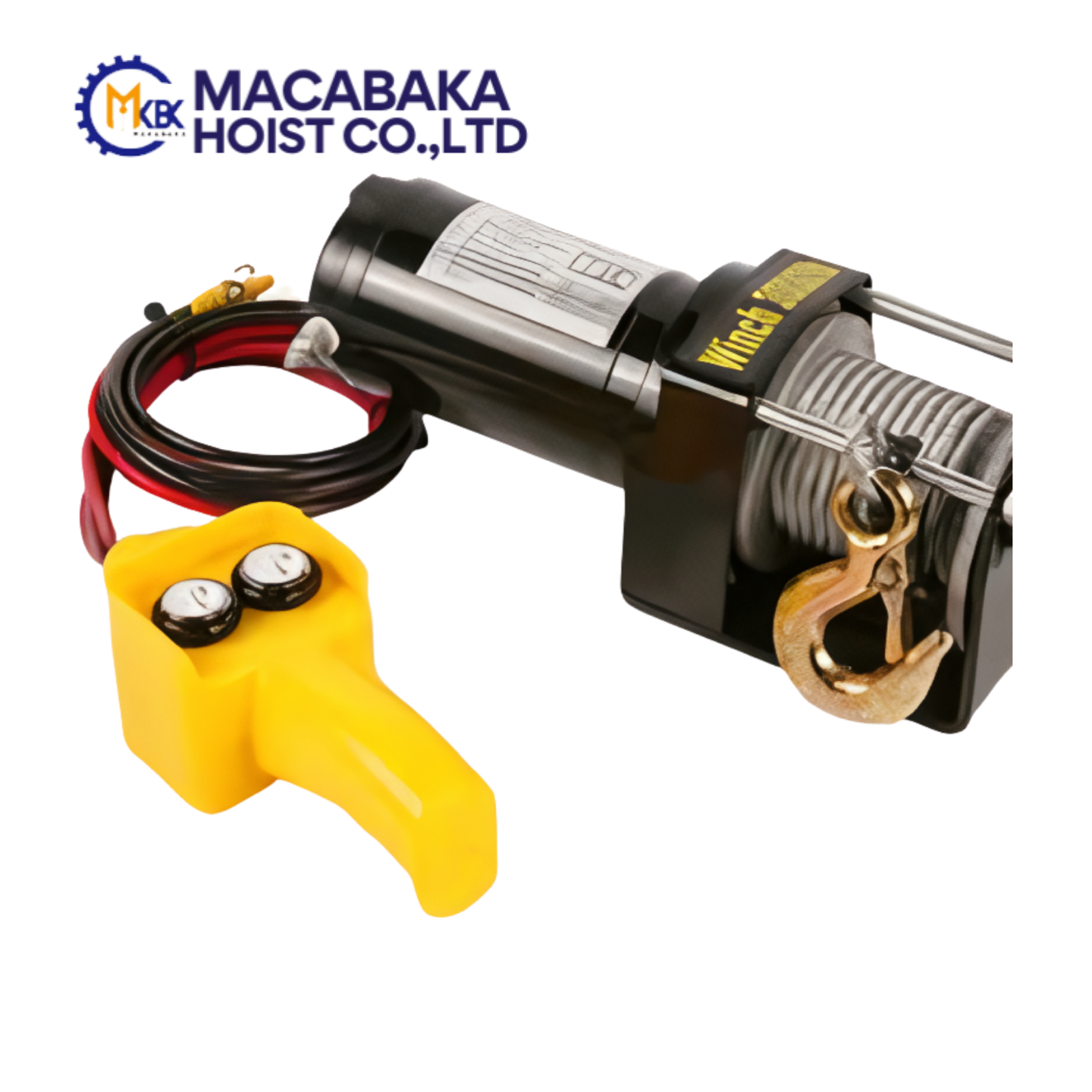

The Electric Winch is a powerful and efficient lifting and pulling device designed for handling heavy loads with ease. It is widely used in construction sites, warehouses, marine operations, mining, and industrial applications.
Equipped with a high-performance motor, durable wire rope, and reliable braking system, the electric winch ensures safe, stable, and efficient operation. Its compact design and strong structure make it suitable for both lifting and horizontal pulling tasks.
With flexible control options and a wide range of capacities, the electric winch is an ideal solution for material handling, equipment installation, and heavy-duty pulling operations.

Product Features

High Performance Motor

Powerful motor ensures efficient lifting and pulling under heavy loads.

Durable Steel Wire Rope

High-strength wire rope provides excellent wear resistance and long service life.

Strong Drum Structure

Grooved drum design ensures smooth and orderly wire rope winding.

Flexible Control Options

Supports pendant control and wireless remote control for convenient operation.

Wide Range of Applications

Suitable for lifting, pulling, towing, and positioning tasks in various industries.

Modle	Lashing capacity	Rope length	Rope diameter	Voltage
2000lb	2000	6m	4mm	DC12V or 24V
3000lb	3000	6m	5mm	DC12V or 24V
3500lb	3500	10m	5mm	DC12V or 24V
4000lb	4000	10m	5mm	DC12V or 24V
4500lb	4500	10m	7mm	DC12V or 24V
6000lb	6000	14m	9mm	DC12V or 24V
9500lb	9500	24m	9mm	DC12V or 24V
12000lb	12000	24m	9mm	DC12V or 24V
16800lb	16800	24m	10.5mm	DC12V or 24V

Q1: What is the capacity range of your electric winch?

A: Our electric winches are available from 2000lbs to 16800lbs, suitable for different applications.

Q2: What is the standard wire rope length?

A: The standard rope length is 30 meters, and longer or shorter lengths can be customized.

Q3: What type of power supply is required?

A: The standard options are 12V or 24V, and other voltages can be customized.

Q4: What control options are available?

A: The winch supports pendant control and wireless remote control.

Q5: What safety features does the winch have?

A: It is equipped with a reliable braking system, strong drum, and durable wire rope to ensure safe operation.

Q6: What are the common applications of electric winches?

A: Electric winches are widely used in construction, marine operations, mining, warehouses, and equipment installation.
