48V CE Electric Powered Pallet Forklift Truck for Warehouse

1. Powerful drive: The electric pallet truck features an electric drive system with powerful torque and acceleration. It can push and pull heavy loads with ease, making handling more efficient and effortless.

2. Increased efficiency: The electric pallet truck offers greater efficiency than traditional manual pallet trucks. It can lift and lower goods quickly, reducing loading and unloading times and providing faster travel speeds, thus saving time and labour costs.

3. Easy to operate: the electric pallet truck is equipped with an easy-to-operate control system that allows the operator to easily master its functions. Some models also offer an adjustable driver’s seat and multi-function display for a more comfortable and convenient operating experience.

The electric pallet truck is an advanced piece of equipment for logistics and warehousing operations, powered by an electric drive system for fast and efficient handling and stacking of goods.

It plays an important role in the modern logistics industry, providing companies with solutions to improve efficiency, reduce labor intensity and ensure operational safety.

people can have an ergonomic and cost-effective power pallet truck, that can greatly improve both the productivity and ergonomics of your operation.

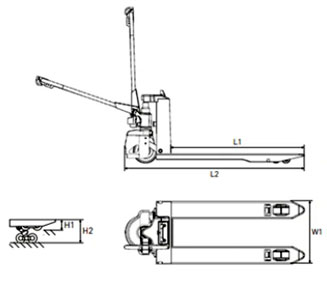

Model NO. : EPT-20E
Production Capacity: 2000kg
Power Unit: 700w
Fuel: Electric
Load center: 500mm
Lithium battery:48V/15AH
Origin: China
Transport Package: Wooden Box or Other

Product details:

Using the type of an electric pallet truck, with a similar size as a manual pallet truck, offer a small turning radius, the electric pallet jack is super light and easy to operate.

1.This pallet jack with load capacity:3300lbs.Lithium battery capacity:24V/20AH. It goes forward and backward, up and down by electricity.

2.With a multi-function operating handle, convenient, including an accelerator, emergency reverse switch, and Horn button.

3.Electric pallet jack battery can be taken out and charged in a different location with the charger.

4.Portable lithium battery, it only takes 3-5 hours to fully charge.

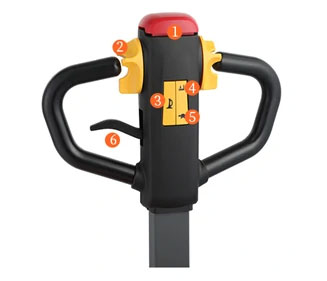

The handle design

Product description 1
1. Emergency reverse button

2. Accelerator knob

3. Horn button

4. Lift button

5. Slow button

6. Handle knob

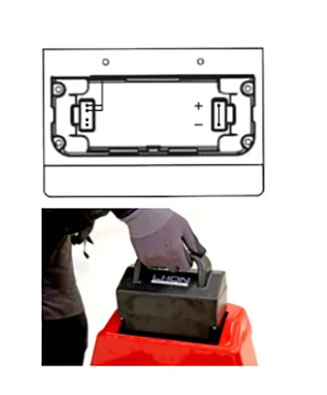

The batter design

Product description 2

Park the pallet truck securely and turn off the power before removing or installing
the battery.

Installation of a lithium battery (after charging):

• The battery is fully charged after 2.5 hours of charging at 100–240 VAC.

• The battery can be operated continuously for 3 hours in a fully charged state.

1.Make sure the pallet truck is still in the power-off state.

2.Identify the positive and negative electrodes according to the pins shown on the figure. Do not plug them in the other way around. + −

3.Insert the battery into the vehicle’s battery compartment.

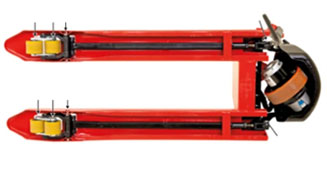

Main components of the product

Product description 3

1. Heavy-gauge steel throughout the chassis, side panels, and power unit cover.

2. Cast aluminum handle with structural webbing for increased strength and lasting durability while operating in tight spaces.

3. Replaceable steel wear blocks protect the undercarriage when driving over uneven surfaces, sharply angled dock plates or while operating on lift gates.

4. Robust drive unit with powerful AC motor, cast iron gearbox, helical gearing, and taper bearings.

5. Integrated steel pouring pump, sturdy and durable without oil leakage

6. Emergency Stop Button，Press it in an emergency to ensure safety

The Hydraulic system- Oil change

Product description 4

Use grease to lubricate all moving parts, lubricate the following parts every six months.The oil level in the rubber reservoir is 5 mm below the top. This must be done with the forks in the lowered position.

Draining the oil:
1. Lower the forks to their lowest position.

2. Remove the discharge valve shaft and the spring from the discharge valve body.

3. The oil now drains out of the hole of the discharge valve (collect
the waste oil in an oil receptacle).
4. After draining

Filling the oil

1.Remove the screw of the reservoir.

2.Pour the oil in the hole, the oil level must be at the same level as
the filler hole.

3. Insert the screw into the hole of the reservoir.

4. Bleed the air from the pump unit.

Bleed the air from the pump unit

1.Set the handle in the LOWER position

2.Move the handle up and down several times

Our services:

1. Customised solutions: We offer customized solutions based on the specific needs of our customers. Whether it is for a particular operating environment, a specific type of goods, or other requirements, we can work with our customers to design and customize electric pallet trucks to ensure optimum performance and results.

2. After-sales service: We offer a comprehensive after-sales service, including equipment installation, commissioning, and training. Our professional technical team can provide equipment repair and maintenance services to ensure proper operation and extend the life of the equipment.

3. Spare parts supply: We offer a supply of original spare parts to ensure that our customers have access to high-quality parts when repairing and replacing equipment. We have a wide range of spare parts in stock and can supply the required parts quickly.

4. Technical advice and support: Our dedicated team can provide technical advice and support on electric pallet trucks. Whether it is about equipment selection, operating instructions, or maintenance advice, we can provide expert advice and solutions.

FAQ :

Q1: What is our factory product range?

We specialize in chain blocks, lever blocks, electric hoists, webbing slings, cargo lashing, hydraulic jacks, forklifts, mini cranes, etc. 2) Hoist Accessories: Load chain, wire rope, rigging, hook, pulley, and shackles.

Q2:How about a sample policy?

Welcome sample order. Please inform your detailed sample requirement, such as the quantity, capacity, chain, lift, and so on. If we have the sample in stock, the ship will be quicker. If we don’t have stock, please understand to wait for the produce. The express fee is charged by the shipping company. The sample fee and express fee are usually paid by a client, for special policies need to apply by the client and approved by our leaders.

Q3: How to order?

Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order.

We need to know the following information for your order:

1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color, and packing requirement

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.

4) Forwarder’s contact details if there are any in China.

Q4: What are the payment terms for sample cost and order amount?

We accept the payment sent by West Union, D/P, D/A, T/T, or L/C at sight.
