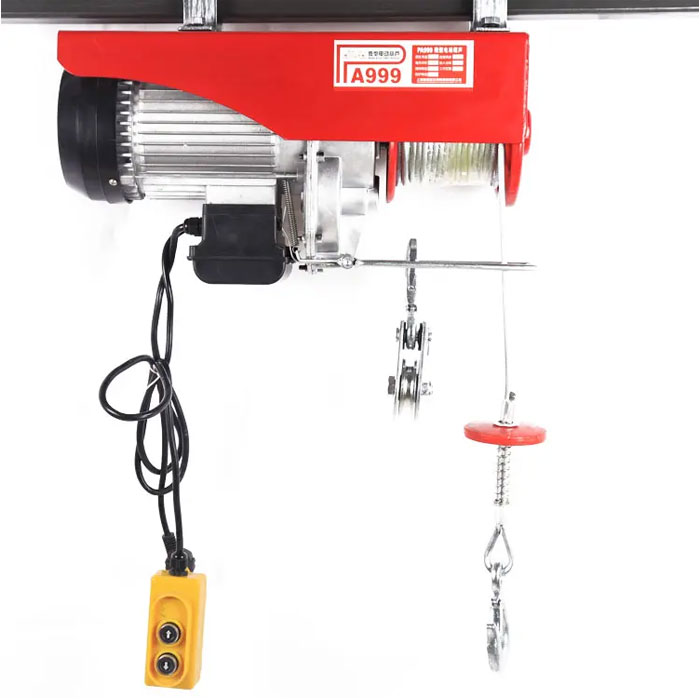

PA Mini Electric Hoist For Construction

PA Mini Electric Hoists are suitable for all occasions, and can lift the cargo which is less than 1200 kgs, especially suitable for high-rise building to lift heavy items from downstairs. This kind of hoists are simple structure, easy installation, small size and single phase power as a power source.

Min. order:1 Piece

Payment:TT,LC,DA,DP

Shipment:Contact us to negotiate shipping details

Main specifications

1. The emergency stop switch

2. Upper limit function

3. Thermal protection terminal

4. Protection class IP54

5. Insulation class B

6. Group of mechanisms M1

7. Work Duty: S3-25%-10min

8. Rated Volt: 220/230V ~ 50Hz

9. With Emergency  Stop, 100% Pure Copper Motor, Forged Hooks, Safety Stop, High Quality Shells, Ingress Protection IP54

10. PA electric hoist an use single hook or double hooks.

11. PA mini electric hoist Can work with electric trolley.

The lifting speed can reach up to 10 m/min, steel wire rope at the beginning of design can reach up to 12 meters long (lengthening can be customized), in terms of hook, specially designed as the advanced double Settings, greatly increased the mini electric hoist lifting weight, mini electric hoist can be used on 220V power supply, especially suitable for daily civilian, industrial production line, the freight logistics, etc.

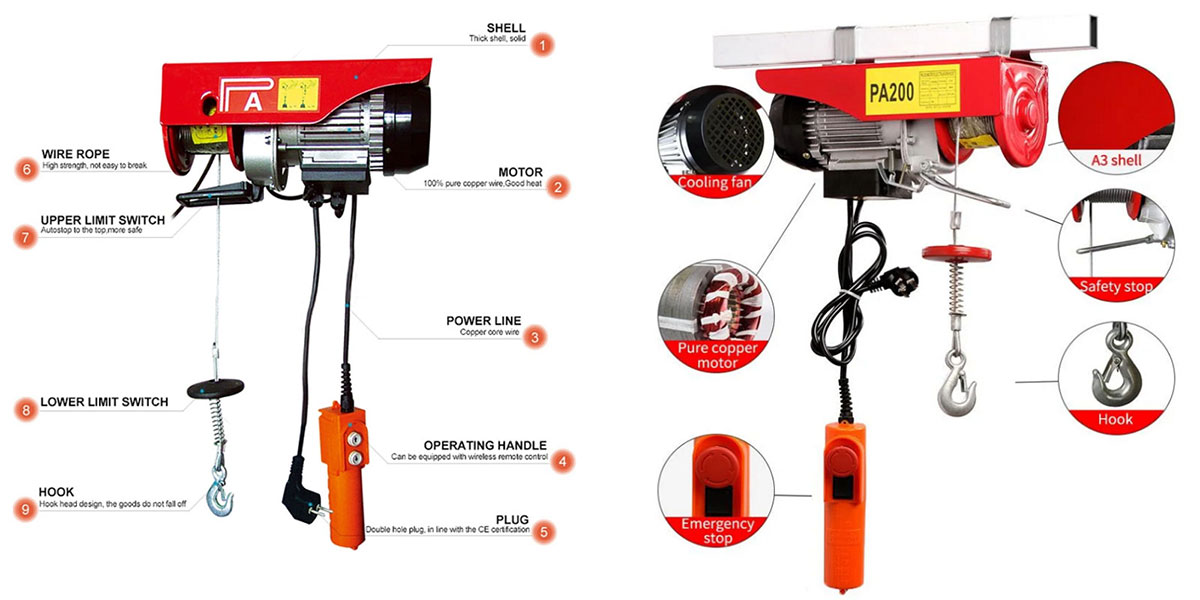

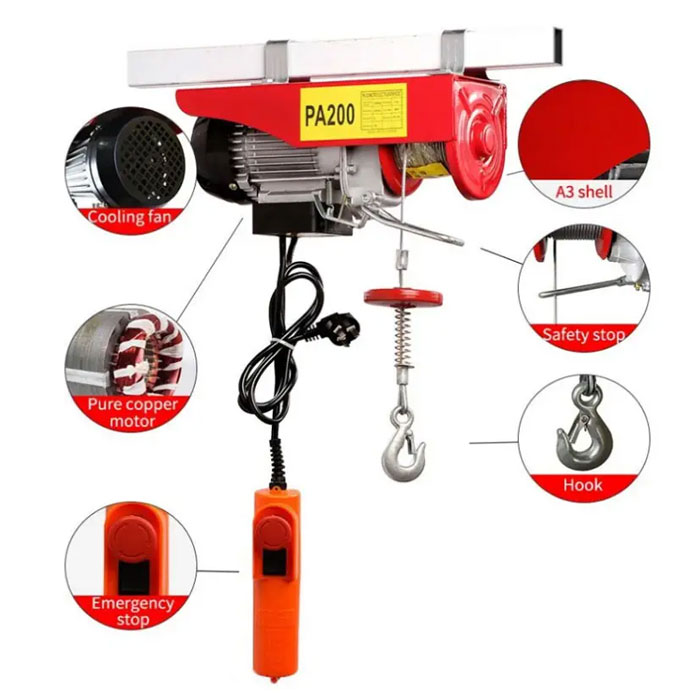

Pure copper motor: Good in heat dissipation, not burning hot, so avoid damaging the machine.

Up and down lifting gear: The button↑indicates rising , the button ↓indicates decline, operation is more convenient.

Household electrical 220V: Operate by 220V household electrical , plug-in power is more easy to use.

Stopper: Control hoist, carry out stop protection , avoid the switch damaging

Anti-rotation wire rope: Strong endurance, no fracture, more safe.

Hook: Strong bearing capacity, thickening material, integrated, not easy to break.

Parameters

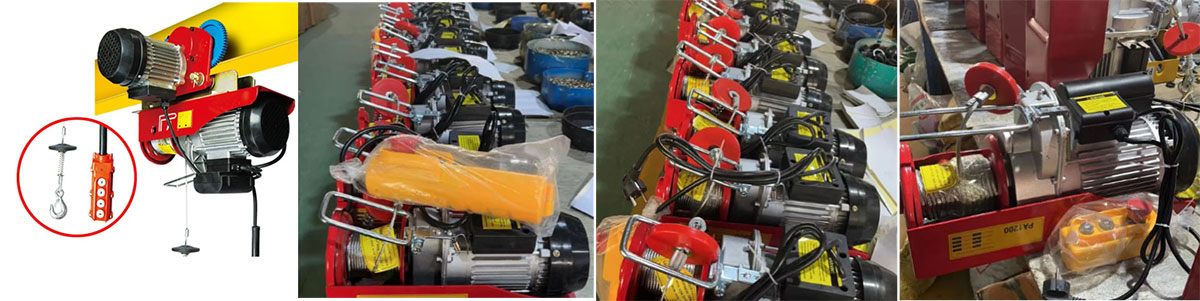

Detail Display
