BCD Explosion-proof Wire Rope Hoist
The BCD type explosion-proof wire rope electric hoist has explosion-proof ratings of DIIBT4 and DIICT4, making it suitable for use in potentially explosive environments with flammable gases, vapors, and air mixtures that may produce sparks, such as coal mines, pharmaceutical factories, chemical plants, and similar workplaces. The external explosion-proof components of the explosion-proof electric hoist are made of special spark-free materials. The motor, electrical components, trolley wheels, rope guides, hooks, operating handles, and other parts are all explosion-proof, ensuring reliable safety in explosive atmospheres.
It is suitable for indoor use in temperatures ranging from -25°C to +40°C. In case of outdoor use, protective devices are required. The explosion-proof electric hoist can be equipped with a trolley for linear or curved movement on I-beam tracks. It can be used with explosion-proof single-beam suspension cranes or explosion-proof single or double-girder overhead cranes, depending on specific requirements. It can also be fixed directly on a support frame for stationary applications.
Product Detail
Explosion-proof wire rope hoist Key Features:
1.Explosion-proof Performance: Designed to be explosion-proof, ensuring safe and reliable usage in hazardous environments.
2.Material Selection: High-strength, corrosion-resistant materials for the wire rope, suitable for various harsh environments.
3.Compact Design: Compact structure for easy portability and operation, suitable for confined workspaces.
4.Efficient Performance: High lifting capacity and smooth operation, meeting various lifting requirements.
Technical Specifications:
5.Lifting Capacity: Different tonnages available based on customer requirements, ranging from light to heavy-duty.
6.Safety Standards: Complies with international explosion-proof safety standards to ensure the safety of operators and equipment.
Application Areas:
Chemical Industry: Suitable for places with explosion hazards like chemical plants and oil depots.
Mining: Provides efficient and safe lifting solutions in hazardous environments like coal mines and metal mines.
Oil Fields: Used in various processes such as petroleum exploration, extraction, and transportation.
Advantages and Value:
Safety Assurance: Explosion-proof design and rigorous quality control ensure operational safety in hazardous environments.
Efficient Operation: High-performance lifting system and compact design to enhance work efficiency.
Customization: Provides personalized customization services according to customer-specific needs.

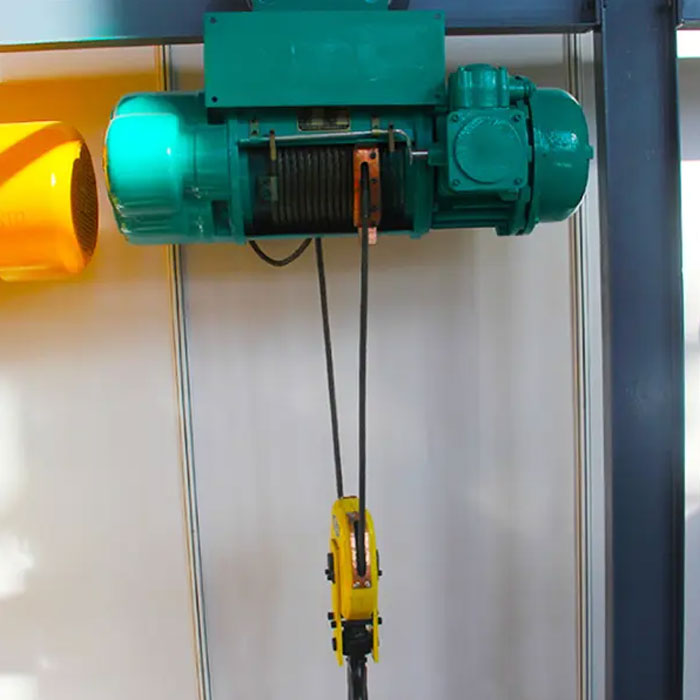

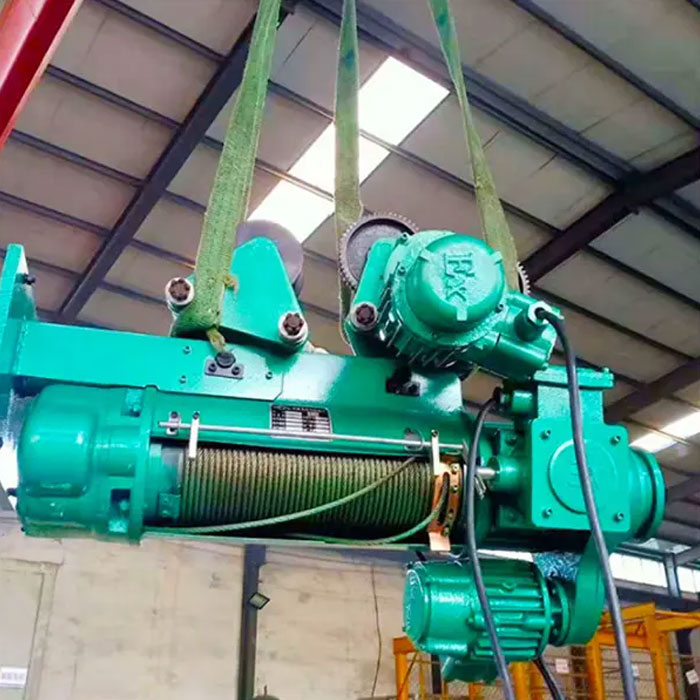

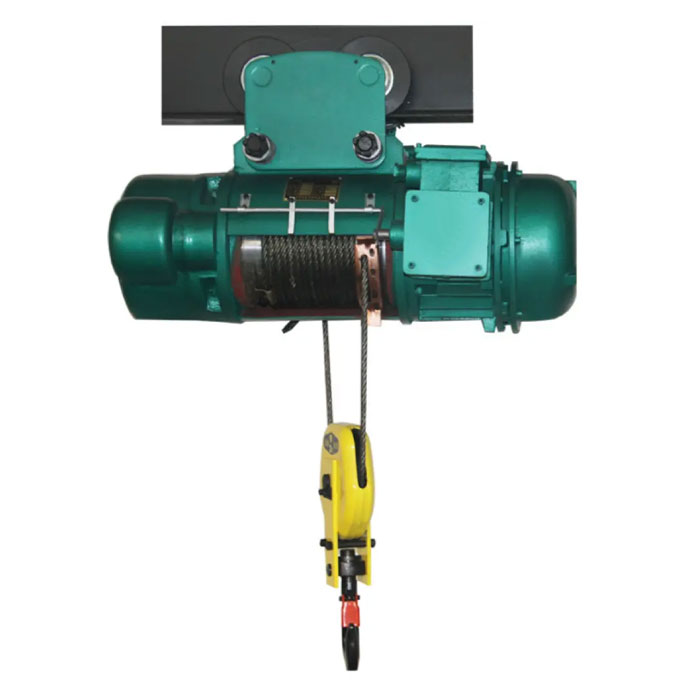

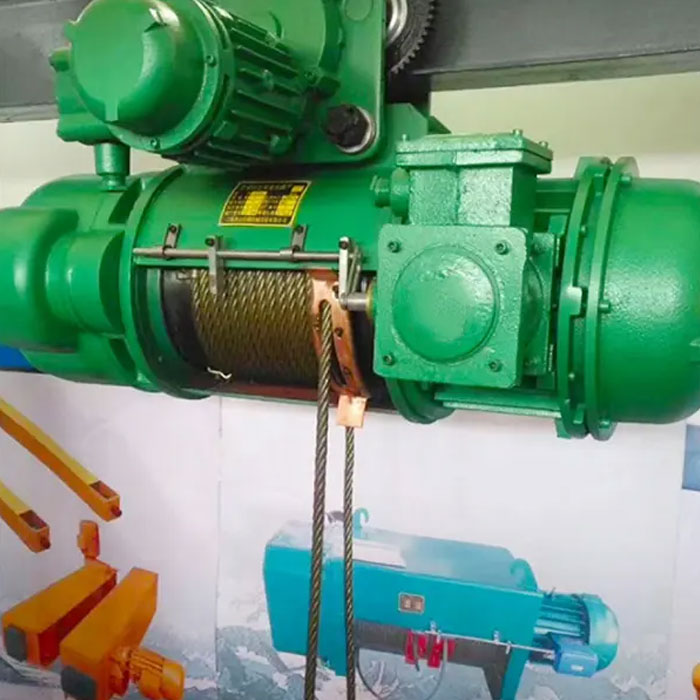

Detail Display
| Model | SY-EW-CD1/SY-EW-MD1 | |||||
| Hoisting Capacity | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Norm Working Level | M3 | M3 | M3 | M3 | M3 | M3 |
| Hoisting Height(m) | 6 9 12 18 24 30 | 6 9 12 18 24 30 | 6 9 12 18 24 30 | 6 9 12 18 24 30 | 6 9 12 18 24 30 | 6 9 12 18 24 30 |
| Hoisting Speed(m/min) | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 7;7/0.7 |
| Operating Speed(suspended type) | 20;20/6.7 30;30/10 | 20;20/6.7 30;30/10 | 20;20/6.7 30;30/10 | 20;20/6.7 30;30/10 | 20;20/6.7 30;30/10 | 20;20/6.7 30;30/10 |
| Type and Power of Hoisting Electric Motor(kw) | ZDY11-4(0.8) | ZDY22-4(1.5) | ZDY31-4(3) | ZDY32-4(4.5) | ZD41-4(7.5) | ZD51-4(13) |
| ZDS1-0.2/0.8(0.2/0.8) | ZDS1-0.2/1.5(0.2/1.5) | ZDS1-0.4/3(0.4/3) | ZDS1-0.4/4.5(0.4/4.5) | ZDS1-0.8/7.5(0.8/7.5) | ZDS1-1.5/1.3(1.5/1.3) | |
| Type and Power of Operating Electric Motor(suspended type) | ZDY11-4(0.2) | ZDY11-4(0.2) | ZDY12-4(0.4) | ZDY12-4(0.4) | ZDY21-4(0.8) | ZDY21-4(0.8) |
| Level of Protection | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 |
| Type of Protection | 116a-128b | 116a-128b | 120a-145c | 120a-145c | 125a-163c | 140a-163c |
| Minimum Turning Radius(m) | 1 1 1 1 1.8 2.5 3.2 | 1 1 1 1 1.8 2.5 3.2 | 1.2 1.2 1.5 2.0 2.8 3.5 | 1.2 1.2 1.5 2.0 2.8 3.5 | 1.5 1.5 1.5 2.5 3.0 4.0 | 1.5 1.5 1.5 2.5 3.0 4.0 |
| Net weight(kg) | 135 140 155 175 185 195 | 180 190 205 220 235 255 | 250 265 300 320 340 360 | 320 340 350 380 410 440 | 590 630 650 700 750 800 | 820 870 960 1015 1090 1125 |

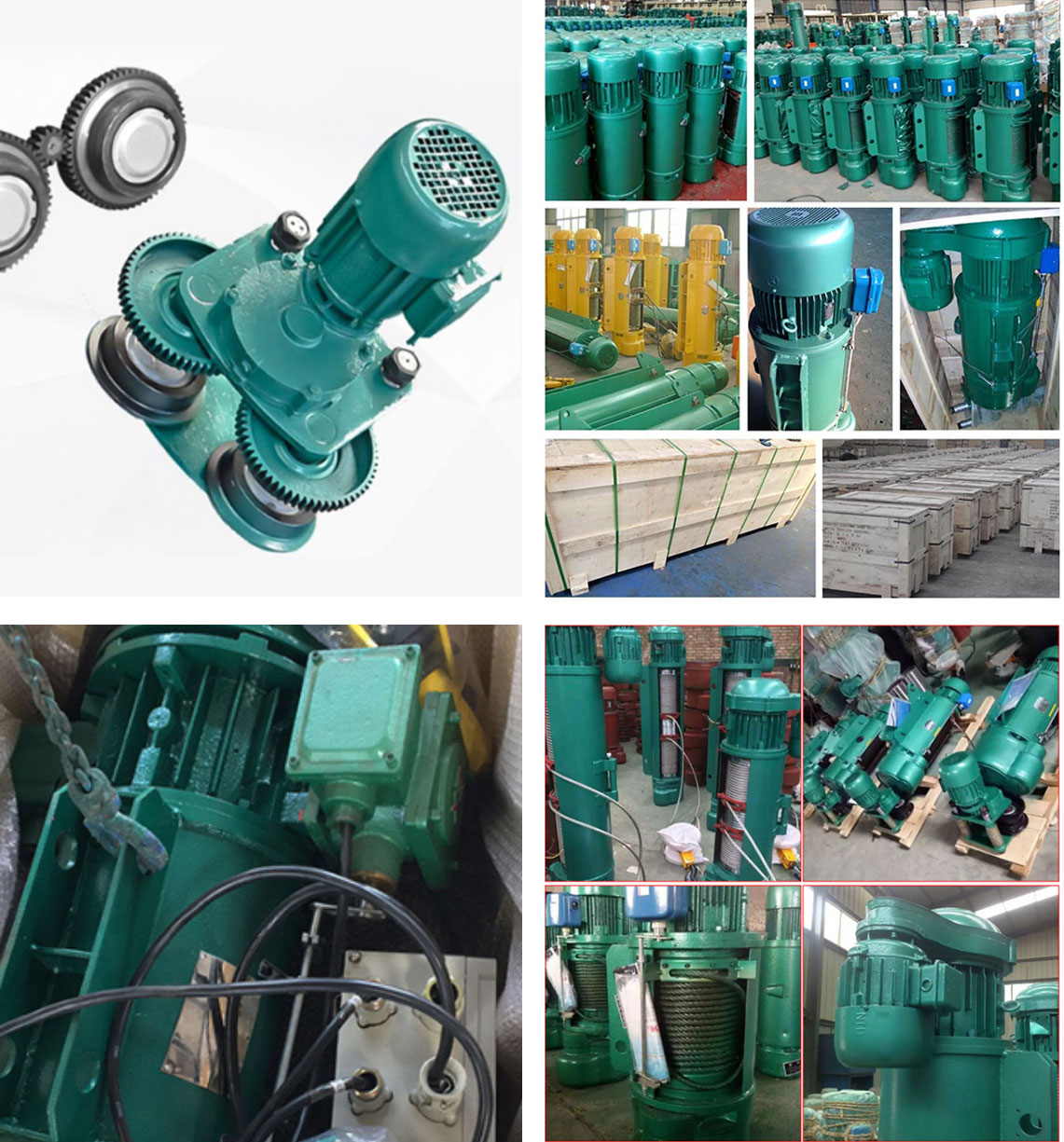

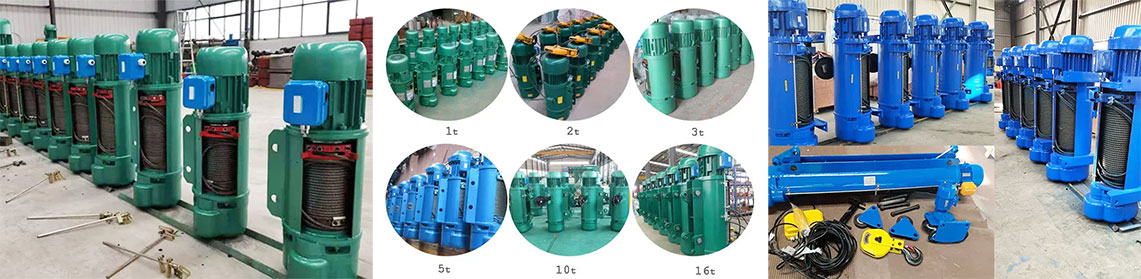

Factory Show

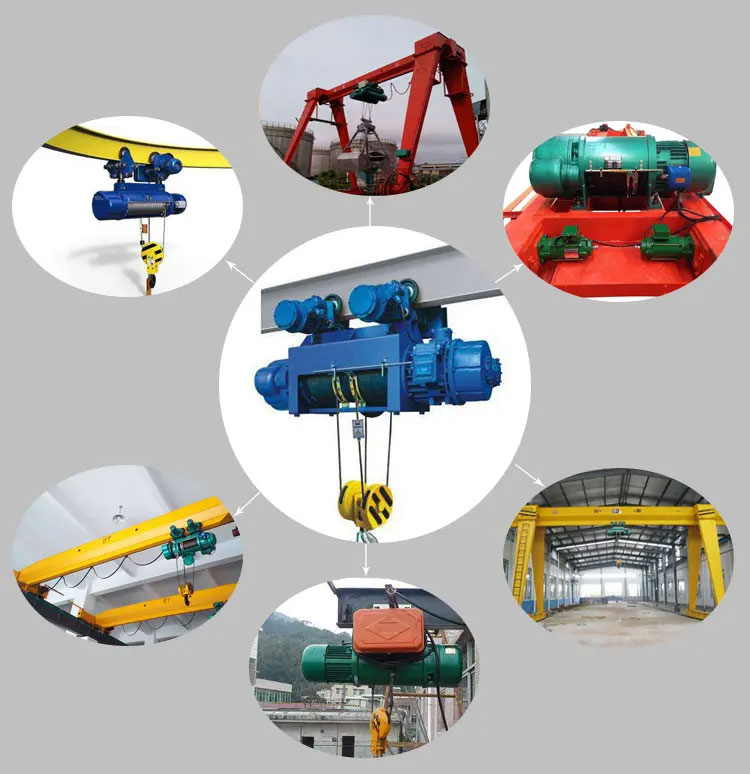

Application

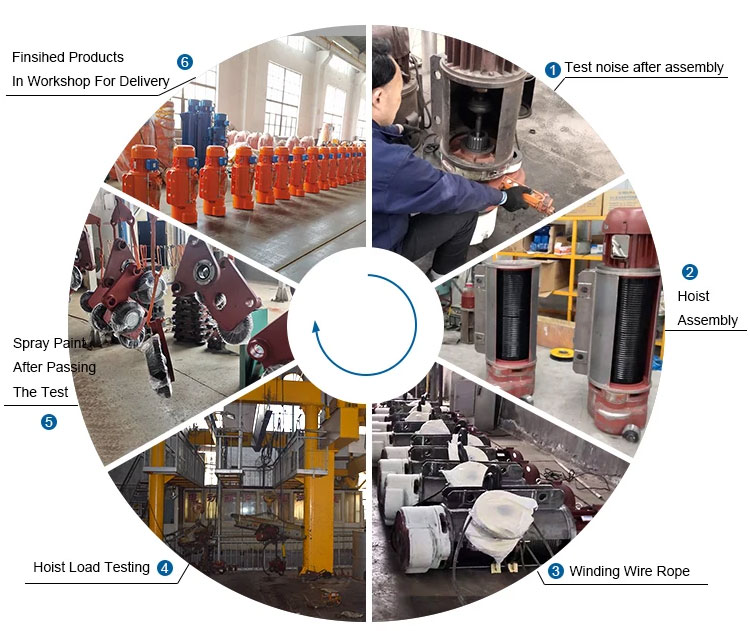

Production Process

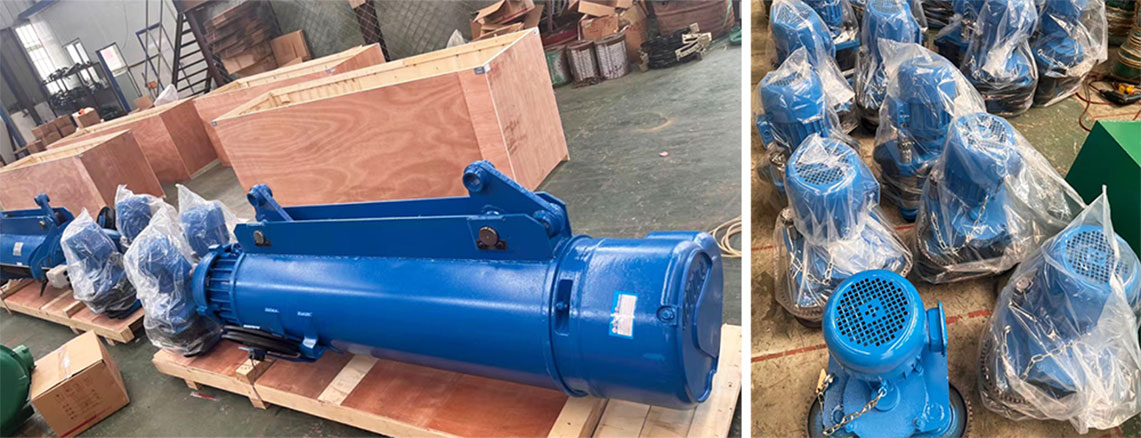

Package
