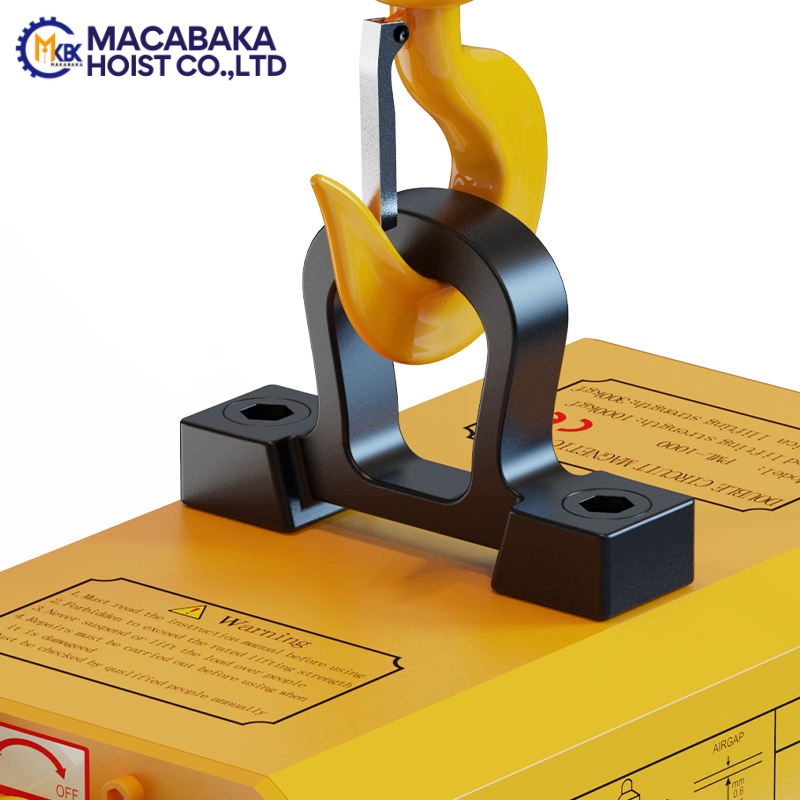

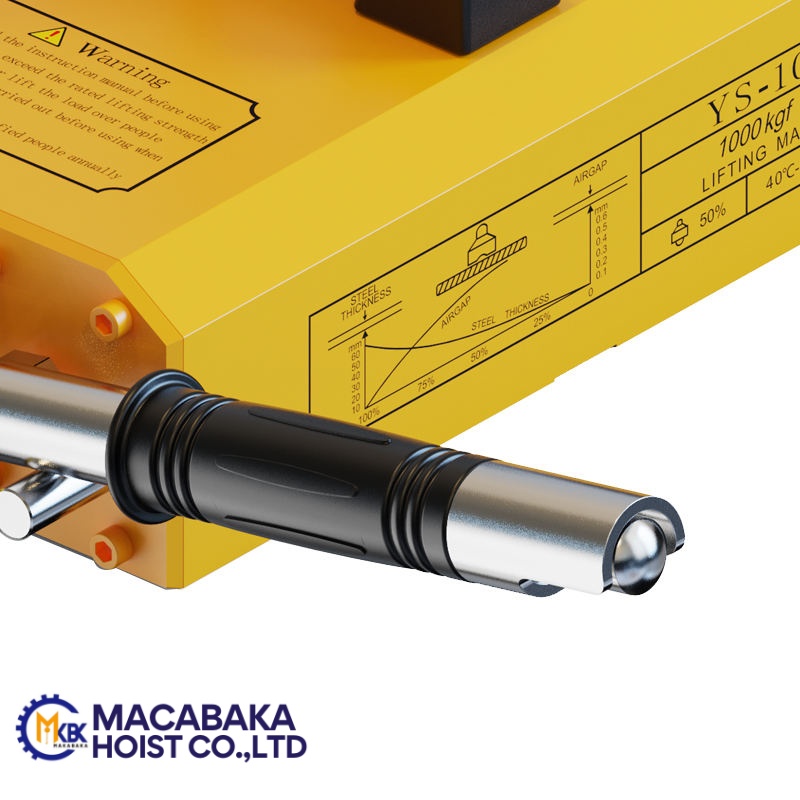

A Steel Plate Permanent Magnet Lifter is a manual lifting device that uses high-performance permanent magnets to safely lift and move steel plates, steel blocks, round bars, and other ferromagnetic materials without electricity or batteries. It is widely used in workshops, warehouses, steel processing centers, shipyards, and factories.

Primary Applications

1. Handheld, convenient, high-precision, and easy to carry for the logistics industry.
2. High-precision, fast-speed sensing, high load-bearing capacity for the freight industry, including docks and cranes.
3. Mineral safety and visualization.

4. High degree of automation in processing workshops; easy to use, install, maintain, and clean.

Model	Rated Capacity(kg)	Max pulling power(kg)	Net weight (kg)
MK-SPML300	300	900	10
MK-SPML400	400	1000	10
MK-SPML500	500	1500	21
MK-SPML600	600	1500	21
MK-SPML1000	1000	2500	39

Q1: What is a Steel Plate Permanent Magnet Lifter used for?

A:It is used to lift and transport steel plates, steel blocks, round bars, and other ferromagnetic materials safely and efficiently without using electricity.

Q2: How does a Permanent Magnet Lifter work?

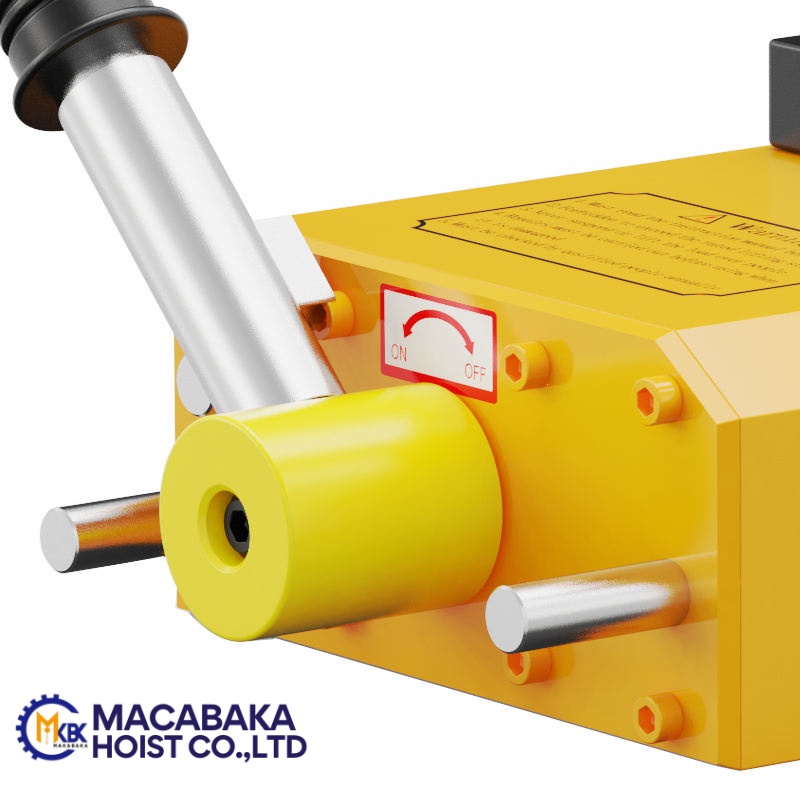

A:It uses internal permanent magnets. By turning the handle, the magnetic field is switched ON or OFF. When ON, it firmly holds the steel; when OFF, the load is released.

Q3: What materials can it lift?

A:It can lift carbon steel, alloy steel, steel plates, steel blocks, pipes, and round bars.
It cannot lift stainless steel, aluminum, copper, or non-magnetic materials.

Q4: Can it lift thin steel plates?

A:Yes, but the holding force depends on plate thickness, surface condition, and material type. Thinner plates have lower magnetic force. We can recommend the correct model based on your plate thickness.

Q5: Can one lifter be used for different sizes of steel plates?

A:Yes, as long as the weight, thickness, and contact area are within the rated working conditions of the lifter.

Q6: What safety precautions should be followed?

A:Ensure the steel surface is clean and flat
Do not exceed the rated capacity
Do not lift multiple sheets separately unless specially designed
Do not use on non-magnetic materials

Q7: Why choose a Permanent Magnet Lifter instead of hooks or slings?

A:
✔ Faster operation
✔ Safer and more stable
✔ No damage to steel surface
✔ No power required
✔ Higher efficiency and lower labor cost
