Shackles are essential lifting and rigging components used for connecting slings, chains, and lifting equipment. They are widely applied in construction, marine, mining, transportation, and industrial lifting operations.
Manufactured from high-strength carbon steel or alloy steel, shackles provide excellent load-bearing capacity and durability. With various types such as bow shackles and D shackles, they offer flexibility for different lifting and rigging configurations.
With reliable strength, simple structure, and easy installation, shackles are a critical component for safe and efficient lifting operations.

Product Features

High Strength Material

Made from high-quality carbon steel or alloy steel for excellent load capacity.

Multiple Types Available

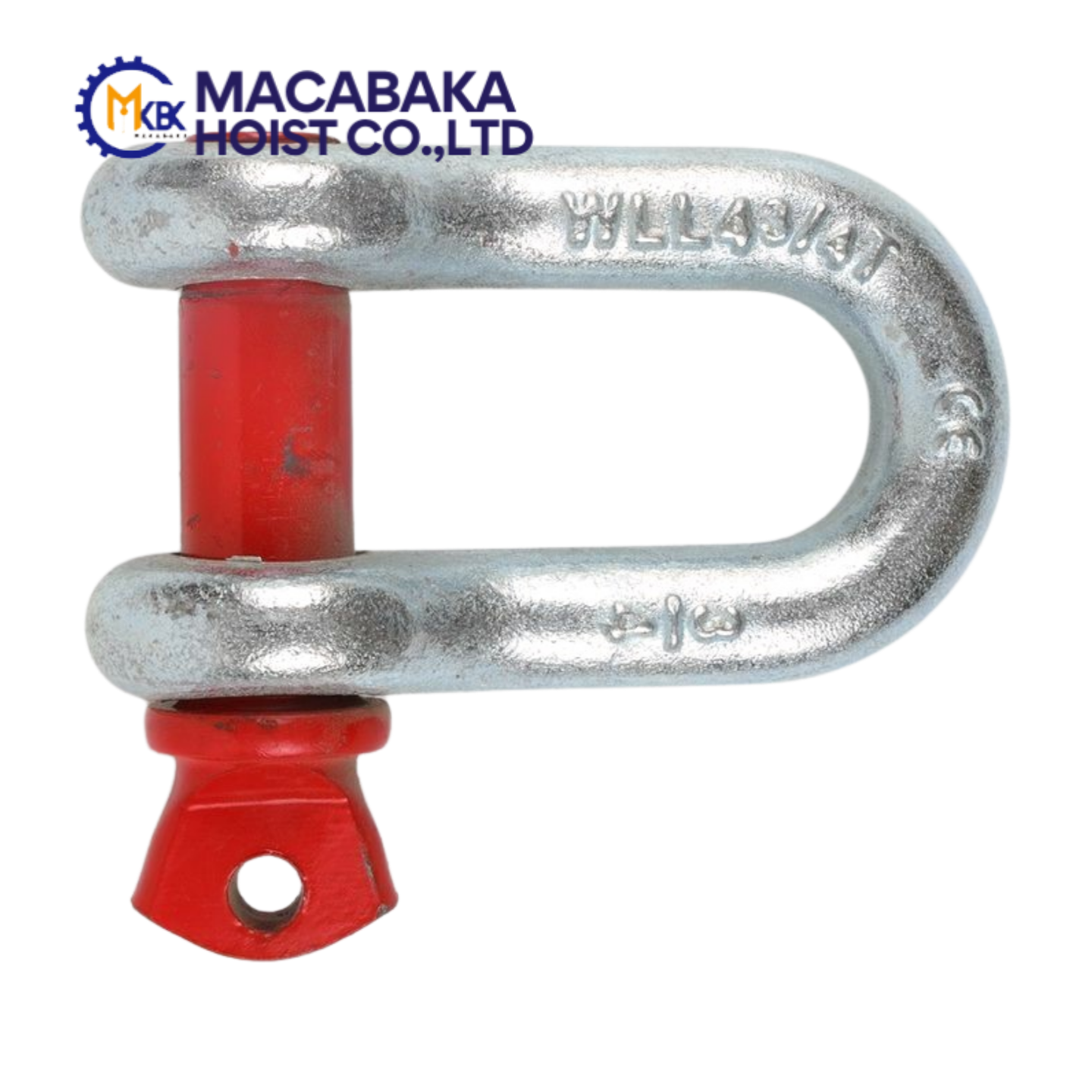

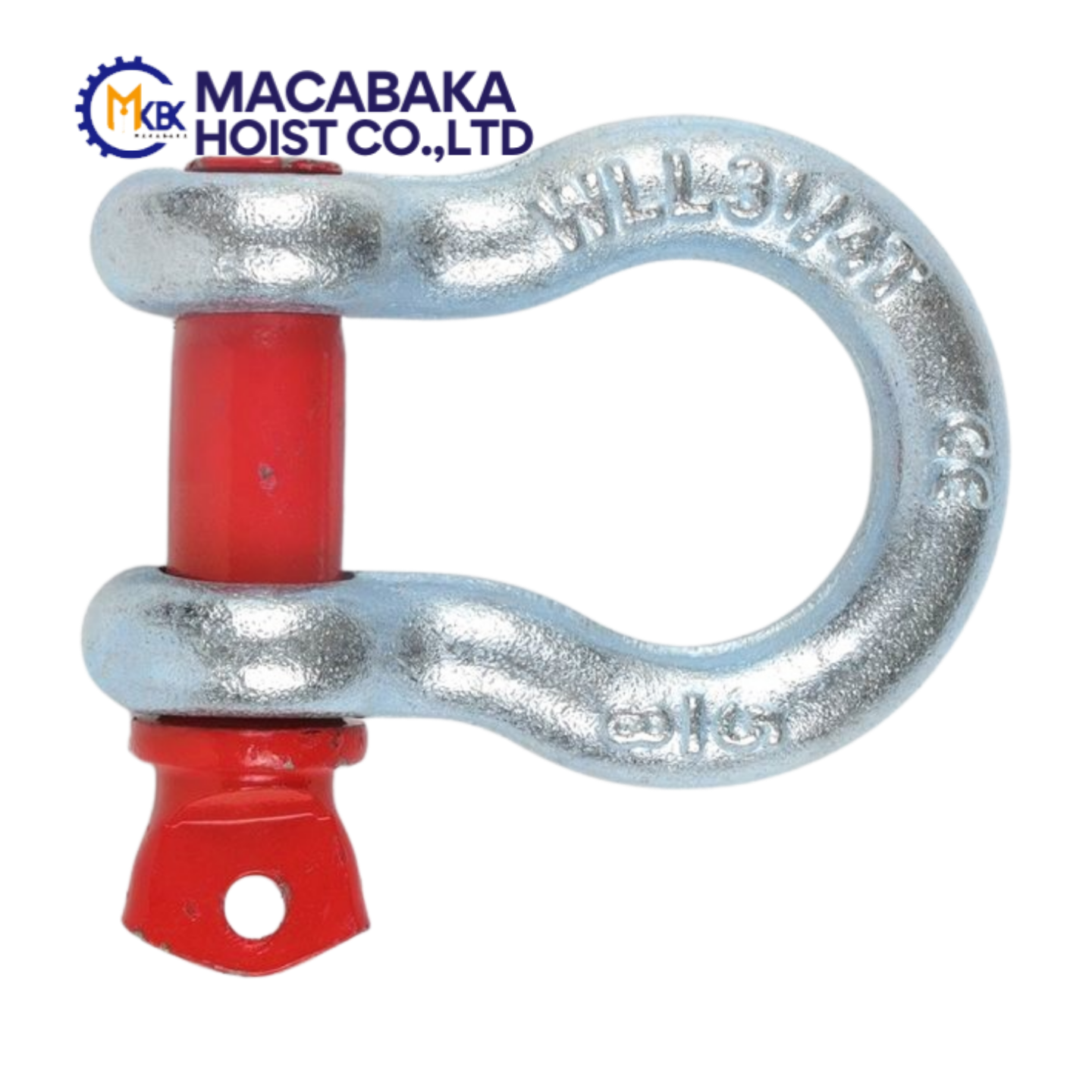

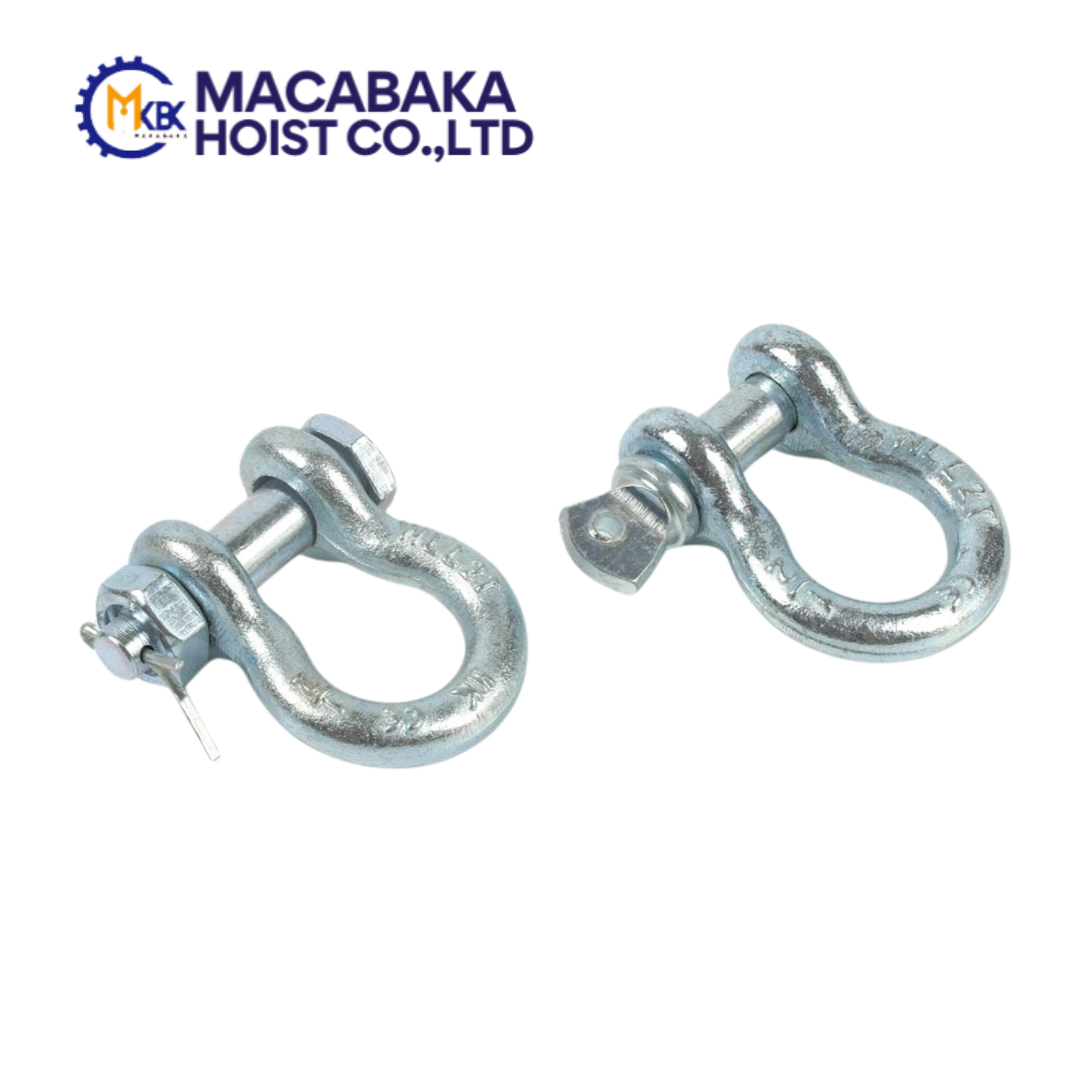

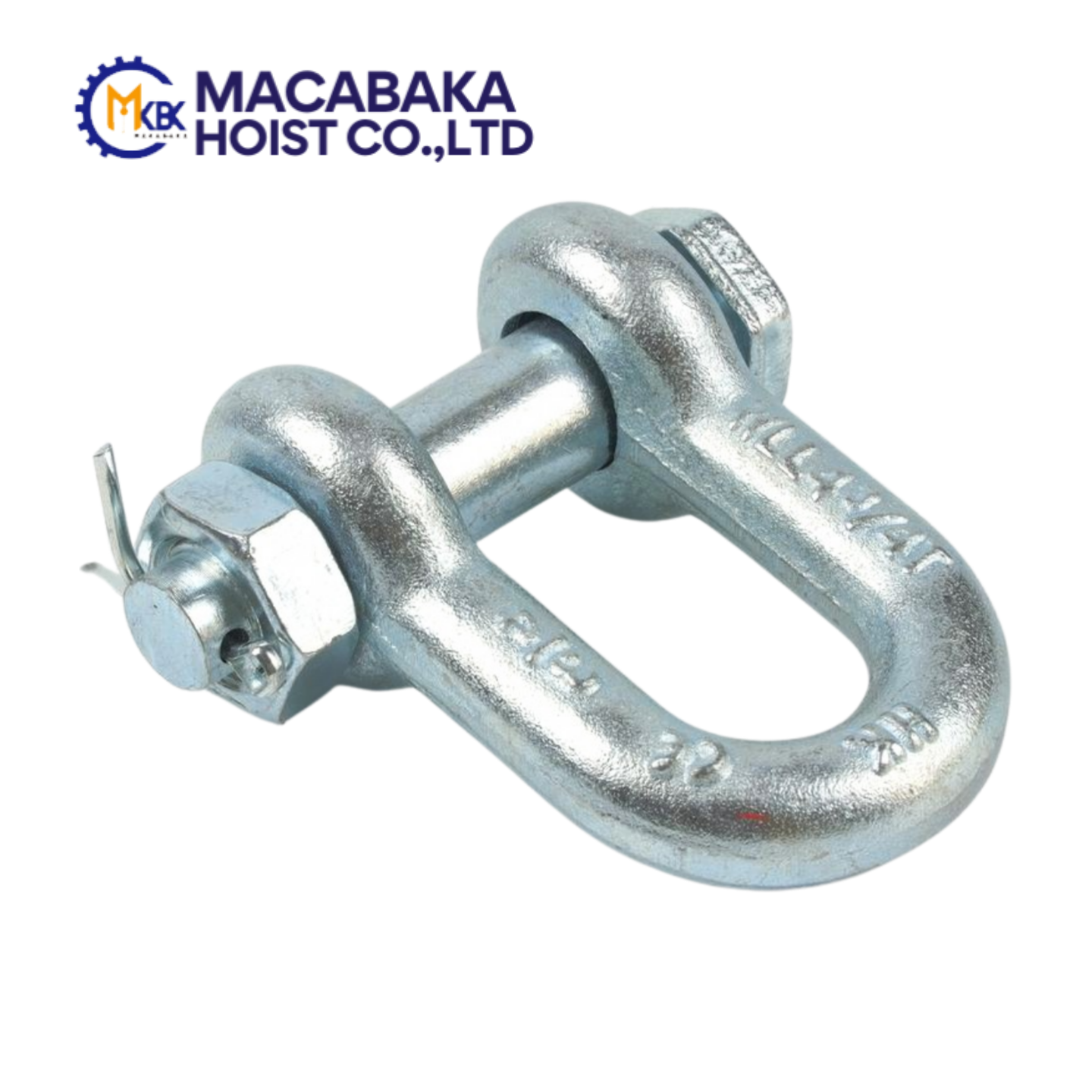

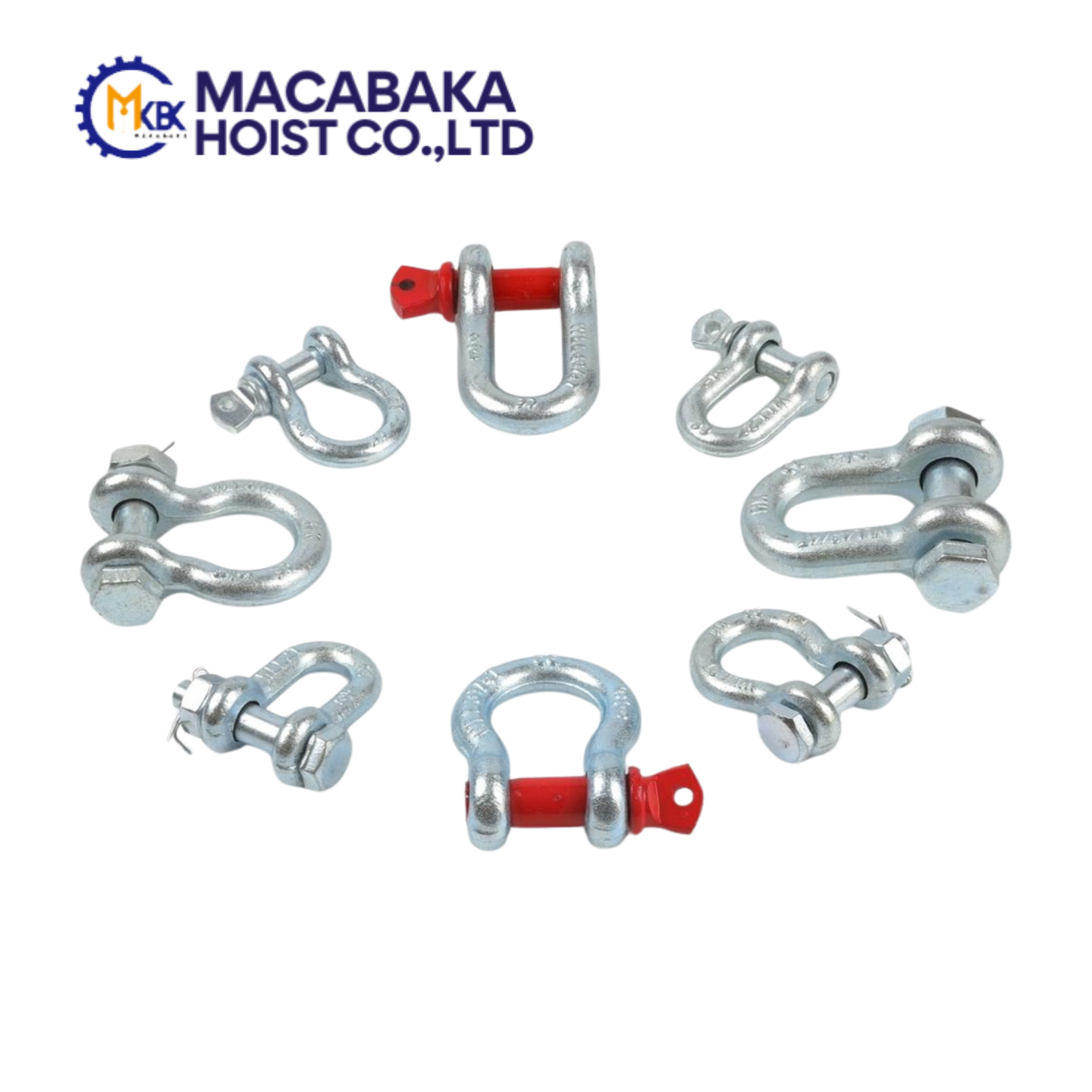

Available in bow shackles and D shackles to suit different applications.

Reliable Safety Design

Equipped with secure pin systems (screw pin or bolt type) to ensure safe connections.

Corrosion Resistant

Galvanized or coated surface improves resistance to rust and harsh environments.

Easy Installation and Removal

Simple structure allows quick assembly and disassembly.

Wide Application Range

Suitable for lifting, rigging, towing, marine, and industrial uses.

Size (inch)	WLL (Ton)	Pin Diameter (mm)	Inside Width (mm)	Inside Length (mm)	Weight (kg)
1/4	0.5	6.5	13	22	0.05
5/16	0.75	8	16	27	0.08
3/8	1	9.5	19	31	0.13
1/2	2	12.5	25	43	0.28
5/8	3.25	16	32	52	0.55
3/4	4.75	19	38	64	1.05
7/8	6.5	22	44	71	1.5
1	8.5	25.5	51	84	2.3

Q1: What types of shackles do you offer?

A: We offer bow shackles (anchor shackles) and D shackles (chain shackles) for different applications.

Q2: What materials are used for shackles?

A: Shackles are made from high-strength carbon steel or alloy steel, ensuring durability and safety.

Q3: What is the safety factor?

A: Common safety factors include 4:1, 5:1, and 6:1, depending on the standard and application.

Q4: What pin types are available?

A: We provide screw pin, bolt type, and safety bolt with nut and cotter pin options.

Q5: Can you provide OEM service?

A: Yes, we support OEM customization, including logo, color, and packaging.

Q6: What are shackles mainly used for?

A: Shackles are widely used for lifting, rigging, towing, marine operations, and load securing.
