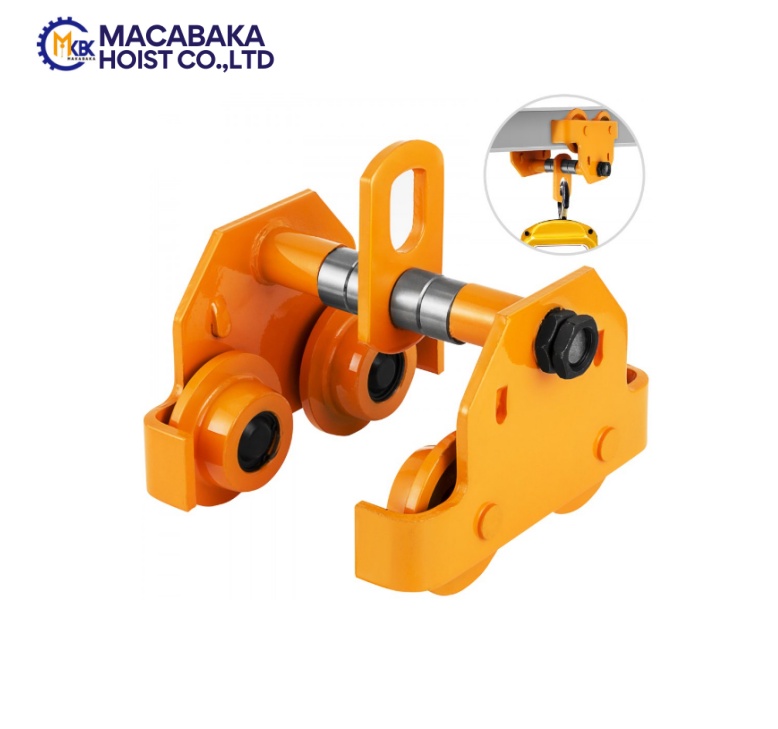

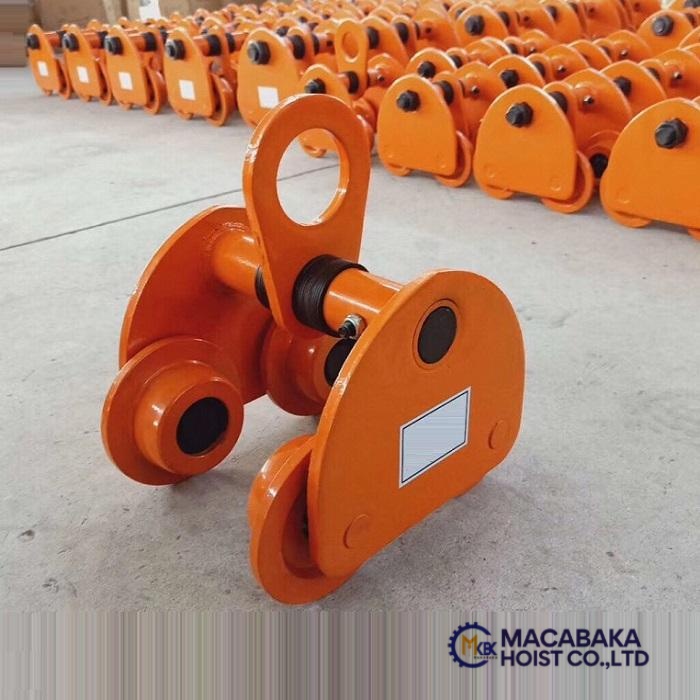

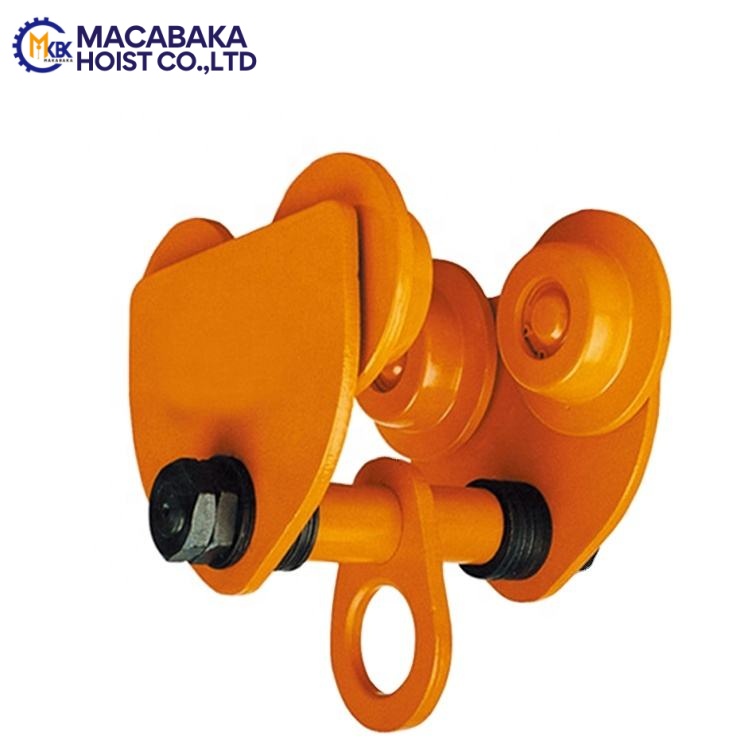

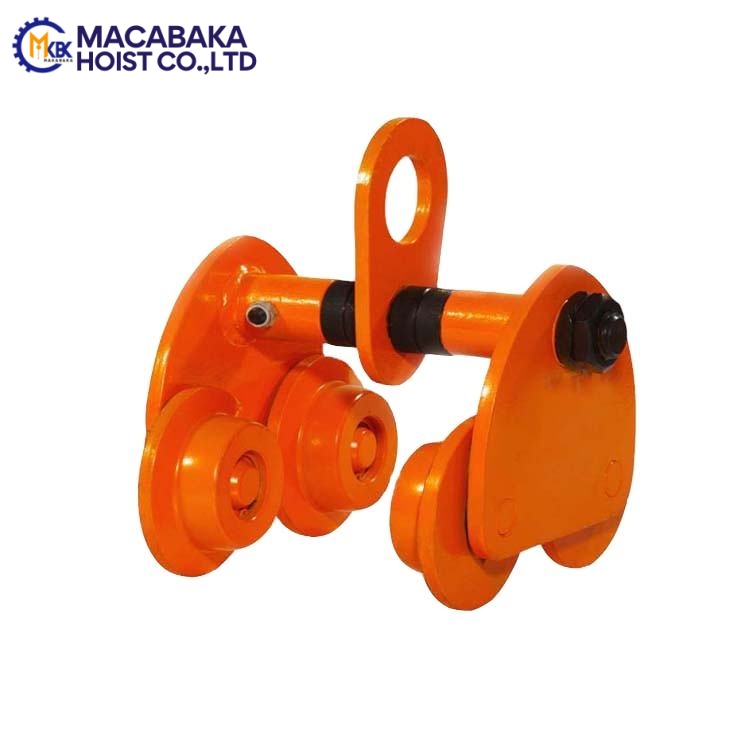

The Push Pull Trolley is a manual beam trolley designed to suspend lifting equipment and move loads horizontally along I-beams or H-beams by hand pushing or pulling. Unlike gear trolleys, it does not require a hand chain, making it a simple, cost-effective, and low-maintenance solution for light to medium-duty lifting applications.

Primary Applications

Workshops & Manufacturing Plants:For moving parts, tools, and machinery components along overhead beams.
Warehouses & Storage Facilities:Used for loading, unloading, and positioning goods in confined spaces.
Maintenance & Repair Areas:Ideal for equipment installation, servicing, and maintenance work.
Construction Sites:Suitable for lifting tasks where simple and fast setup is needed.

Light Industrial & Commercial Use:Cost-efficient solution for occasional lifting and horizontal movement.

Capacity	l-beam conmmendedmm	N.W/KGS	A	B	C	H	F	K
0.5t	68-94	4.8	177	170	187	114	3	24
1t	68-100	7.7	194	206	206	119	3	24
2t	94-124	12.8	235	240	243	140	3	30.5
3t	100-140	24.5	275	282	321	212	3	45
5t	124-180	43	338	327	392.5	245	3	60
10t	142-180	88	362	389	489.5	320	5	82

Q1: What is a Push Pull Trolley used for?

A:It is used to suspend a hoist and move loads horizontally along an overhead beam by manually pushing or pulling the load.

Q2: What is the difference between a Push Pull Trolley and a Gear Trolley?

A:A Push Pull Trolley is moved by hand without a chain, making it simpler and more economical. A Gear Trolley uses a hand chain for controlled movement and is better suited for heavier loads or longer distances.

Q3: What load capacities are available?

A:Common capacities range from 0.5 ton to 5 tons. Higher capacities may be available depending on the model.

Q4: What type of beams are compatible?

A:The trolley is suitable for I-beams and H-beams, with adjustable width to match different flange sizes.

Q5: Can it be used with electric hoists?

A:Yes, it can be used with both manual chain hoists and electric hoists, provided the load capacity is matched correctly.

Q6: Is the Push Pull Trolley safe to use?

A:Yes. It features a stable steel frame, secure wheel design, and balanced load distribution. Proper installation and operation are essential for safe use.

Q7: Can it be used outdoors?

A:It can be used outdoors temporarily, but for long-term outdoor applications, corrosion-resistant coatings or galvanized options are recommended.
