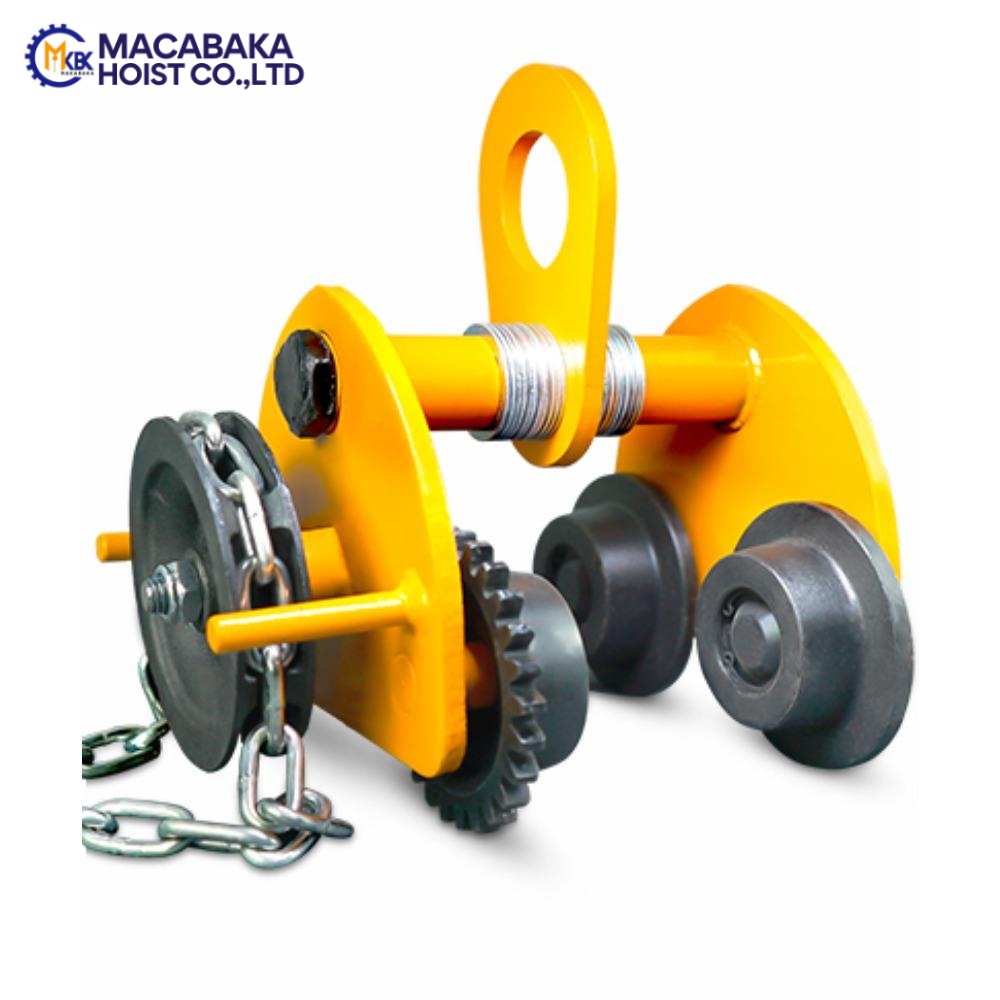

The Alloy Steel Gear Trolley is a heavy-duty lifting accessory designed to suspend and move hoists smoothly along I-beams or H-beams. Manufactured from high-strength alloy steel, it offers excellent load-bearing capacity, durability, and safety for industrial lifting operations.

Primary Applications

Manufacturing Workshops：For moving machinery parts, molds, and steel components along overhead beams.
Warehouses & Logistics Centers：Used with chain hoists for loading, unloading, and positioning heavy cargo.
Construction Sites：Ideal for lifting and transferring materials where cranes are unavailable or space is limited.
Maintenance & Repair Facilities：Suitable for equipment installation, repair, and maintenance operations.

Shipyards & Steel Fabrication Plants：Reliable for handling heavy steel structures and components.

Rated Load (t)		1/2	1		2		3		5		10
Code		210	210	211	210	211	210	211	210	211	210	211
Test Load(ton)		0.625	1.25		2.5		3.75		6.25		12.5
Min Orankledia(m)		0.9	1		1.1		1.3		1.4		1.5
Full load hand chain pull(N)		42.4	42.4		80		112		175		228
Standard chain height(m)		3	3		3		3		3		3
Dimension	A	175	185	245	220	280	230	290	275	335	330	395
	B	175	205		230		275		300		380
	C	185	235		250		310		345		455
	H	95	135		155		185		205		285
	Q	29	46		52		70		72		90
	D	68-120	68-120		88-145		100-150		100-175		125-203
G.W(kg)		4.1	6.35	9.2	9.85	12.4	15.05	18	27.55	30.35	55	63
Package size(cm)	210	21*16*15.8	23*21*19		24.5*24.5*20.5		27.5*25*22.5		32*31*28		40*40*36
	211		28*21.5*19		30*23.5*19		30.5*28.5*20.5		37*31*28		46*40*36

Q1: What is an Alloy Steel Gear Trolley used for?

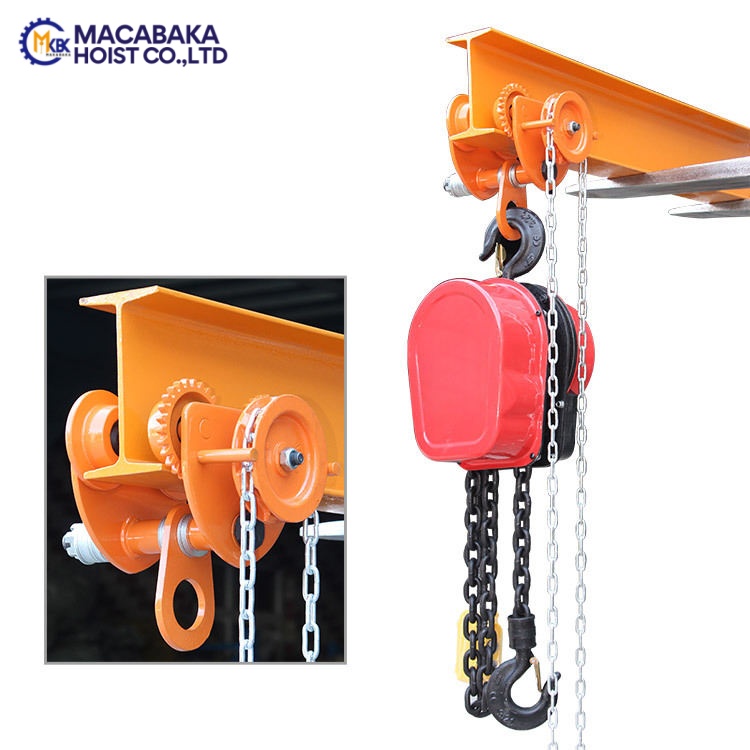

A:It is used to suspend and move lifting equipment, such as chain hoists or electric hoists, horizontally along an I-beam or H-beam.

Q2: What load capacities are available?

A:Common capacities range from 0.5 ton to 10 tons, and higher capacities can be customized upon request.

Q3: What type of beam is this trolley compatible with?

A:It is designed for I-beams and H-beams, with adjustable width to match different beam flange sizes.

Q4: Can it be used with an electric hoist?

A:Yes. The gear trolley is compatible with both manual chain hoists and electric hoists, as long as the load capacity matches.

Q5: Is this trolley suitable for outdoor use?

A:It can be used outdoors temporarily, but for long-term outdoor applications, anti-corrosion treatment or special coatings are recommended.

Q6: How is the trolley operated?

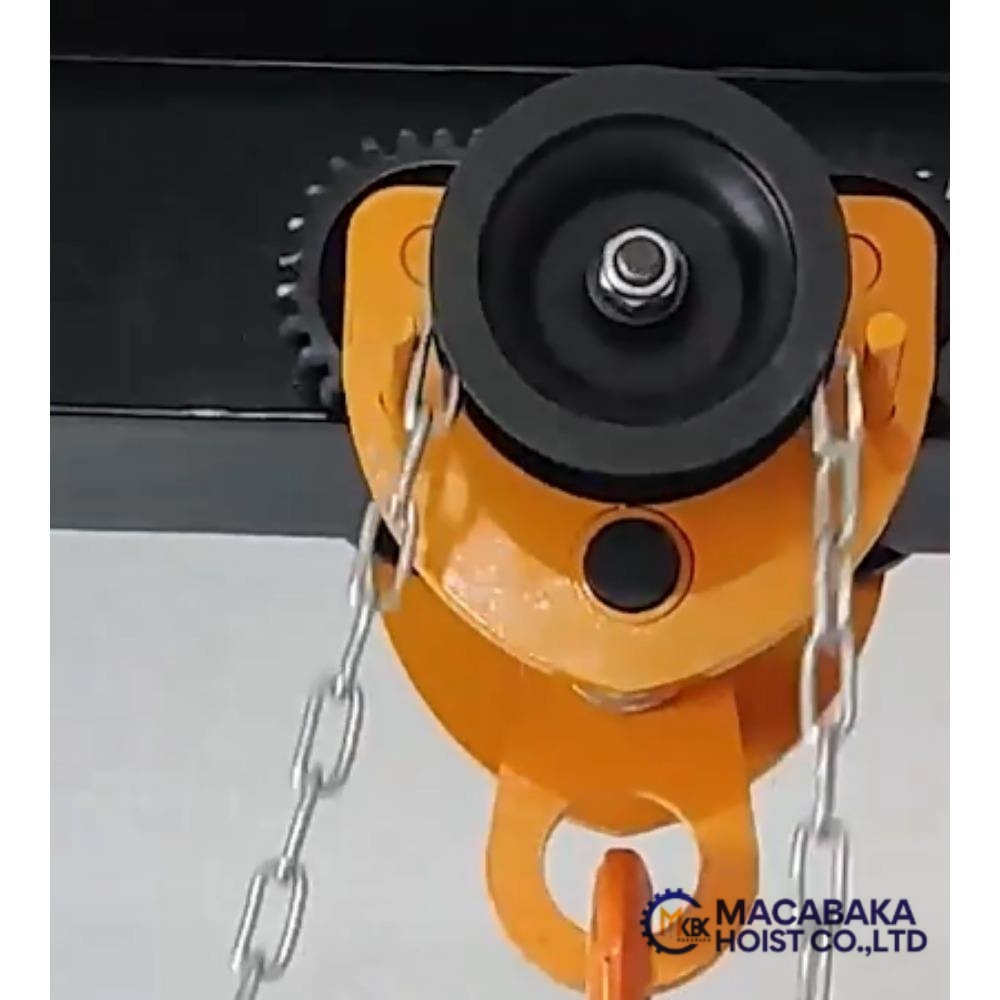

A:The operator pulls the hand chain, which drives the gear mechanism to move the load smoothly along the beam.

Q7: What safety features does it have?

A:Key safety features include:

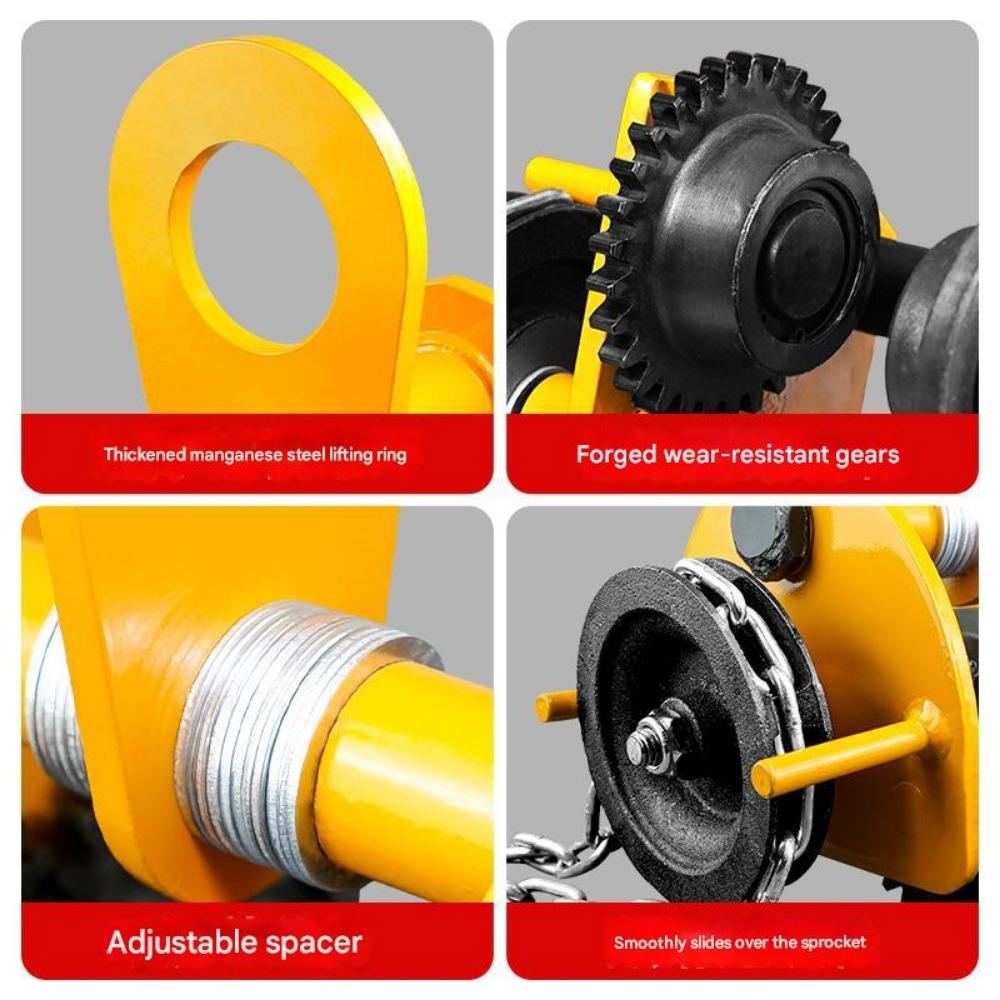

Alloy steel load-bearing structure
Secure wheel locking design
Stable gear transmission system
Even load distribution on wheels
Inspect tires, brakes, and forks
Keep the stacker clean and lubricate moving parts as needed
Schedule professional servicing annually or as recommended
