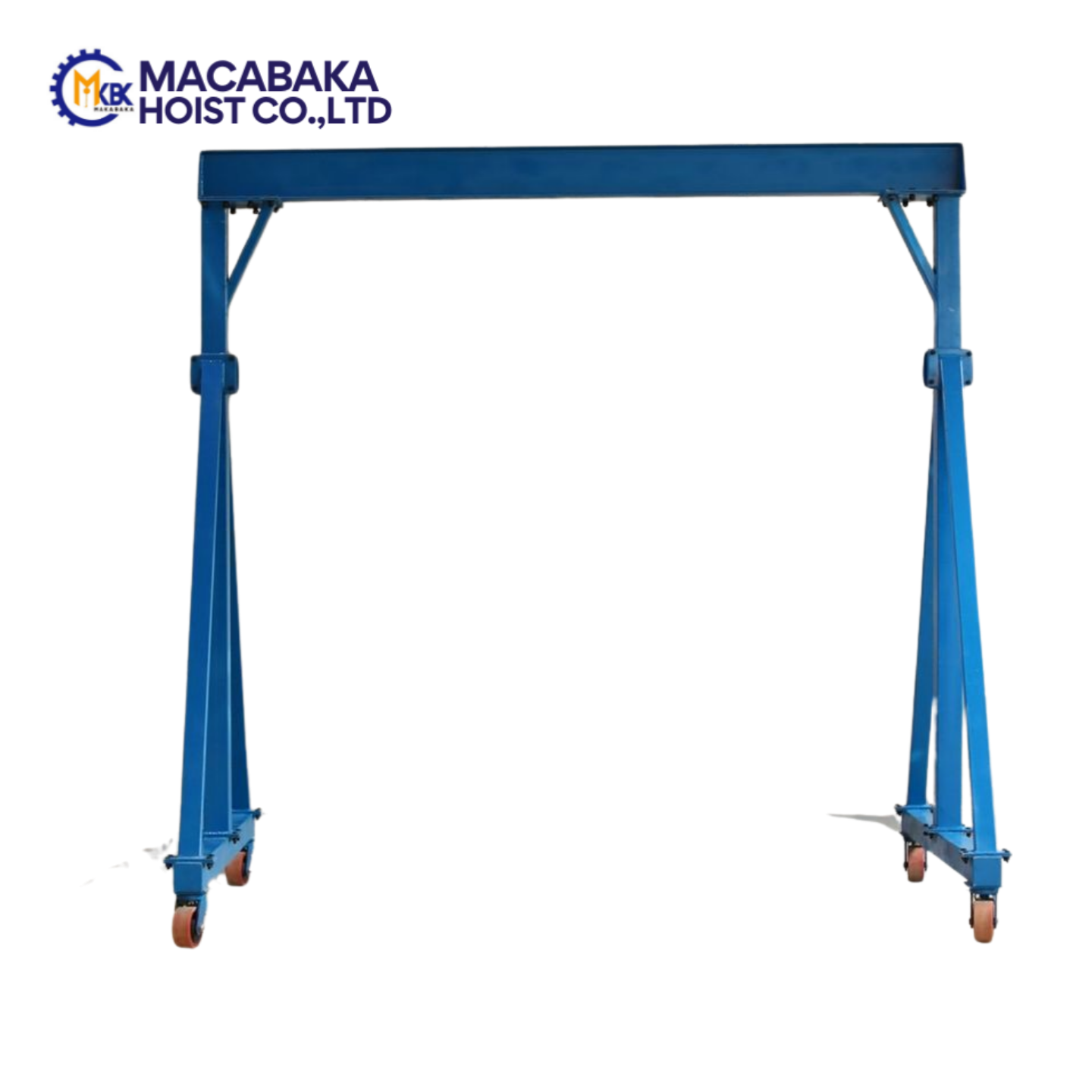

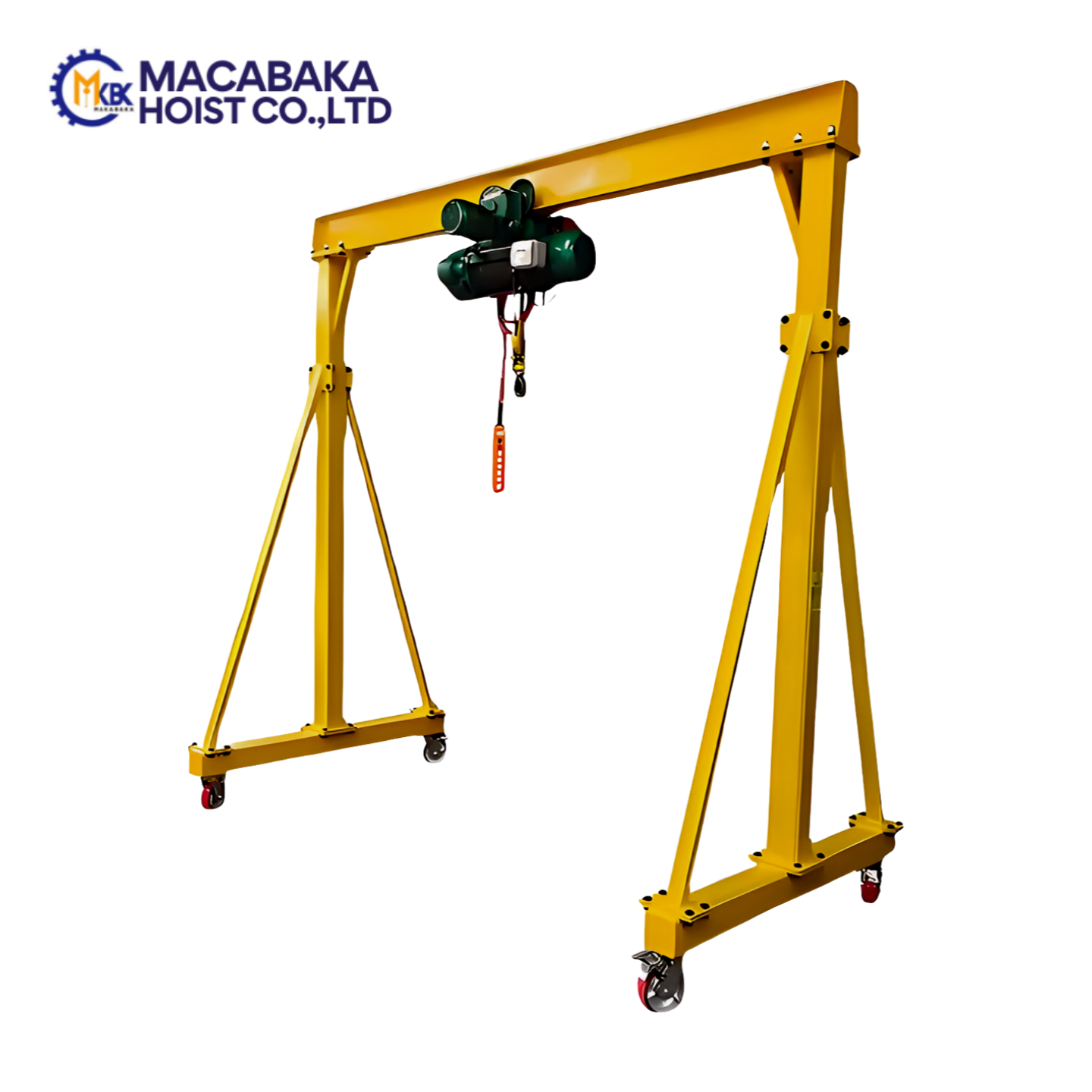

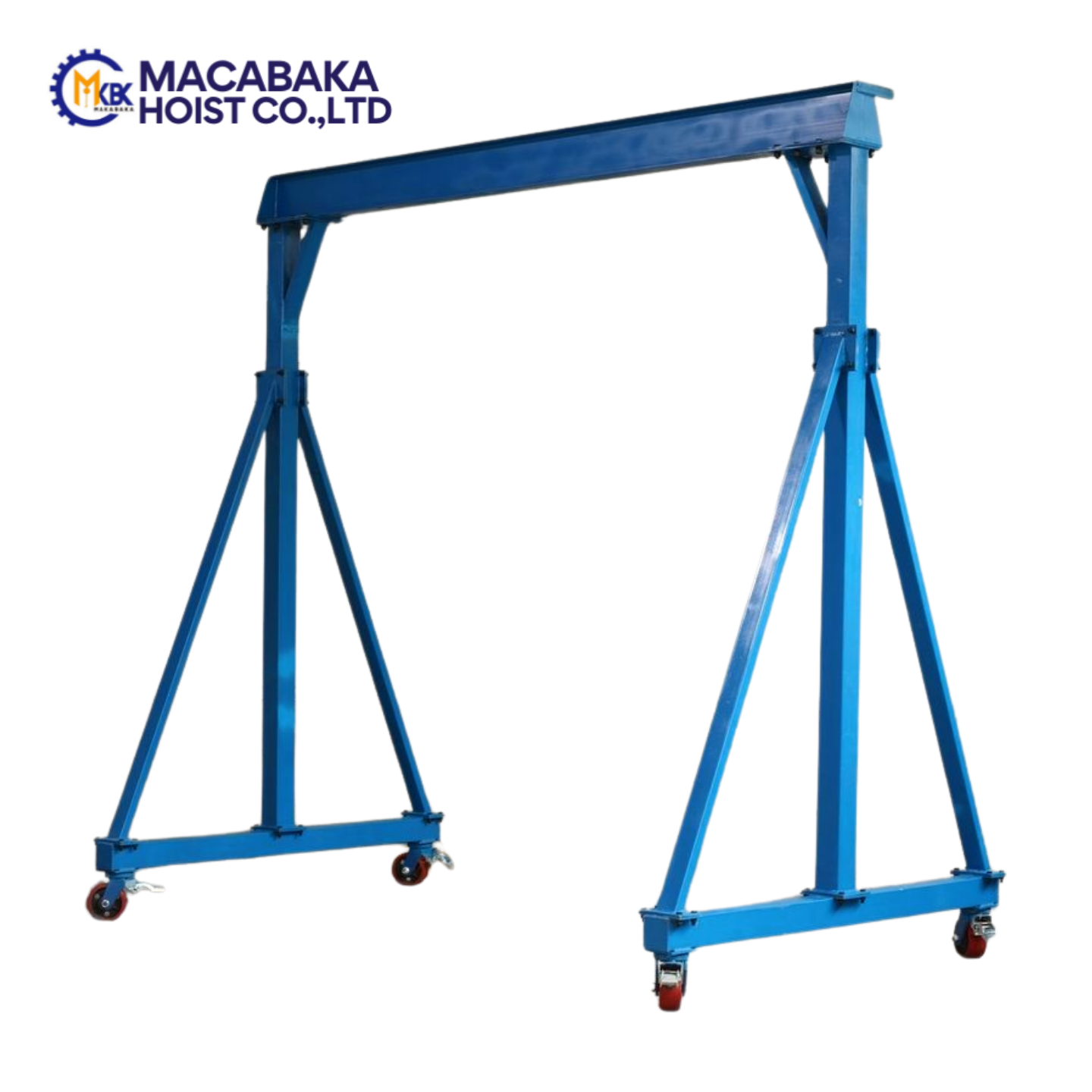

The Gantry Crane is a versatile lifting solution designed for material handling in workshops, warehouses, construction sites, and outdoor yards. It consists of a horizontal beam supported by legs, allowing it to move along the ground on wheels or rails.
Gantry cranes are widely used for lifting heavy equipment, machinery, steel structures, and other loads where overhead crane systems are not available. With flexible design options such as adjustable height and span, they provide an efficient and cost-effective lifting solution.
Equipped with manual or electric hoists, gantry cranes offer stable performance, easy operation, and high safety for various industrial applications.

Product Features

Flexible and Portable Design

Can be easily moved and installed, suitable for various working environments.

Adjustable Height and Span

Customizable dimensions to meet different lifting requirements.

High Load Capacity

Strong steel structure ensures safe handling of heavy loads.

Multiple Configuration Options

Compatible with manual or electric hoists for different applications.

Stable and Safe Operation

Equipped with reliable wheels or rails for smooth movement and stability.

Wide Application Range

Ideal for workshops, warehouses, maintenance, and construction projects.

Model	Capacity (Ton)	Span (m)	Lifting Height (m)	Beam Length (m)	Net Weight (kg)
GC-0.5	0.5	2–4	2–3	3–5	120
GC-1	1	3–5	2–4	4–6	180
GC-2	2	3–6	3–5	5–7	260
GC-3	3	4–7	3–6	6–8	380
GC-5	5	5–8	4–6	7–9	520
GC-10	10	6–10	5–8	8–12	900
Note: 1, Specifications can be customized based on customer requirements 2, Adjustable height and span options are available 3, Suitable for both indoor and outdoor use

Q1: What types of gantry cranes do you offer?

A: We offer portable, adjustable, and fixed gantry cranes for different applications.

Q2: What is the capacity range?

A: The capacity ranges from 0.5 ton to 20 tons.

Q3: Can the size be customized?

A: Yes, span, height, and beam length can be customized according to your needs.

Q4: What hoist options are available?

A: You can choose manual chain hoists or electric hoists.

Q5: Is the gantry crane movable?

A: Yes, portable models are equipped with wheels for easy movement, while heavy-duty types can be rail-mounted.

Q6: Where are gantry cranes commonly used?

A: They are widely used in workshops, warehouses, construction sites, and equipment maintenance applications.
