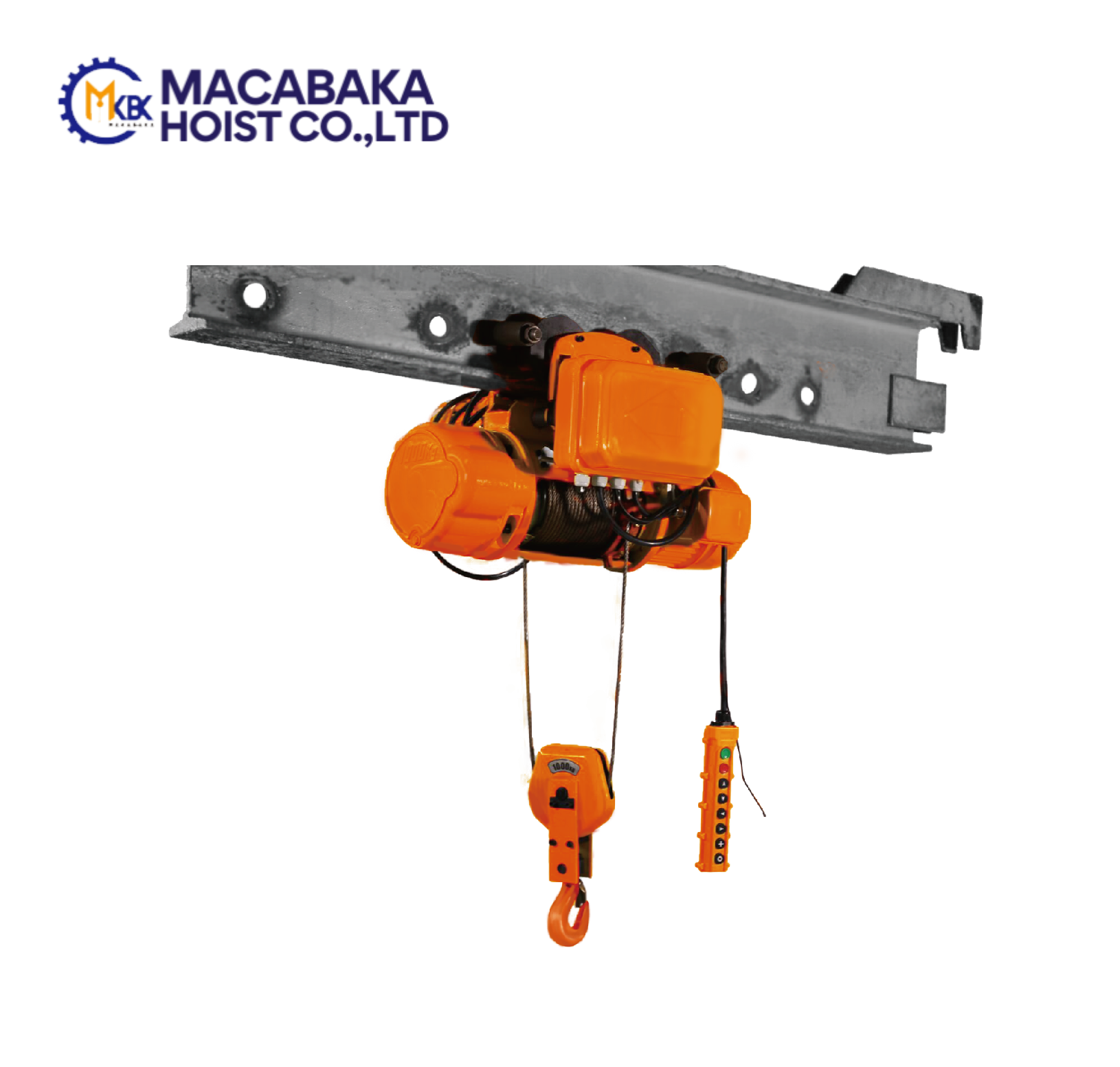

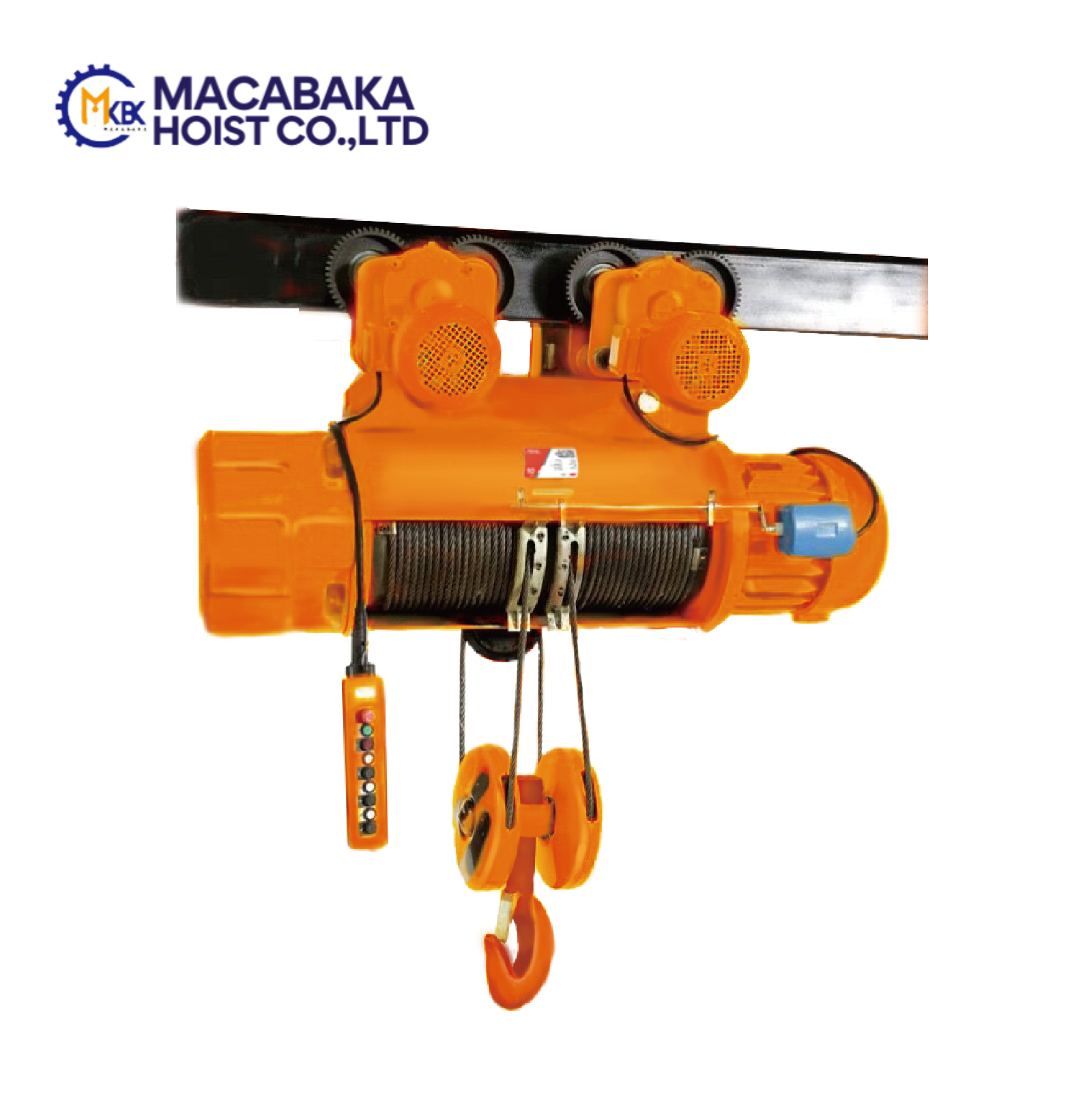

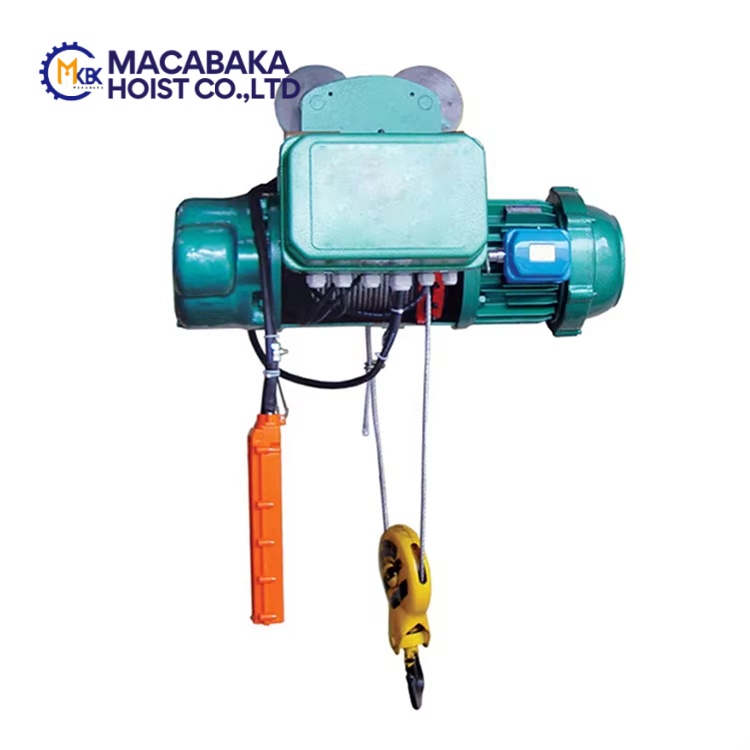

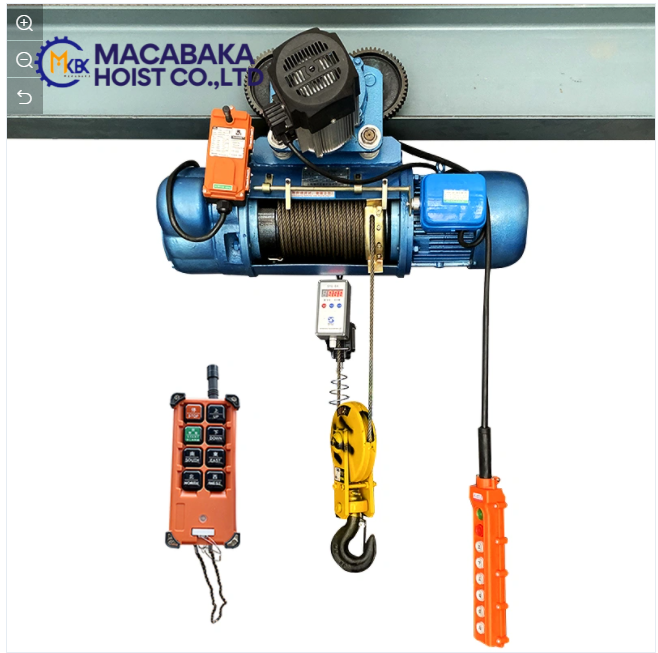

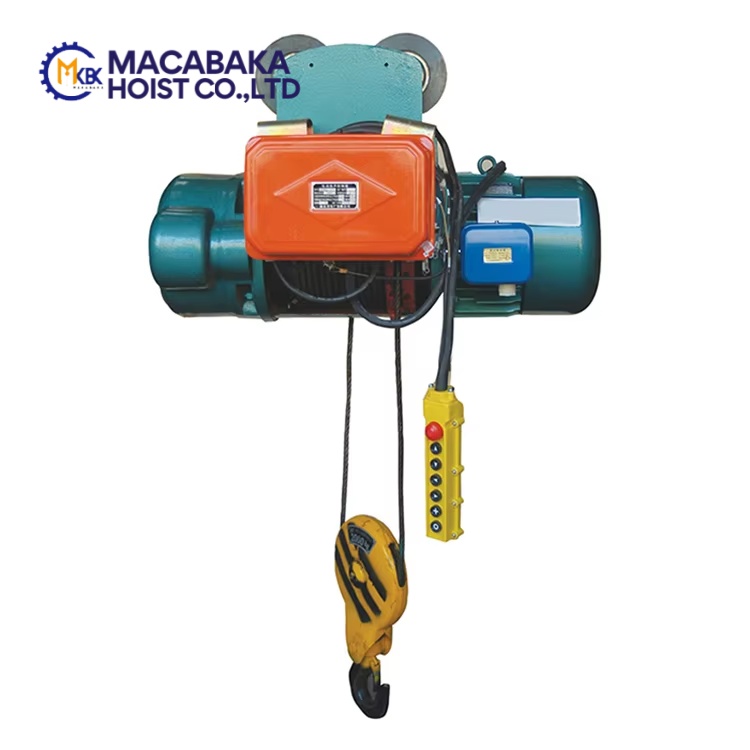

The CD1 Wire Rope Electric Hoist is a widely used lifting device designed for heavy-duty industrial applications. It utilizes a high-strength steel wire rope lifting system combined with a powerful electric motor to provide stable and efficient lifting performance.
This hoist is commonly installed on I-beams or used together with overhead cranes, gantry cranes, and other lifting systems. With its compact structure, reliable operation, and strong lifting capacity, the CD1 electric hoist is widely used in factories, warehouses, workshops, construction sites, and logistics centers.

The hoist is designed with durable components and advanced safety features, ensuring smooth operation, long service life, and high working efficiency.
Model CD1, MD1 Electric Wire Hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.
With slight modification, it can also be used as a winch.
It is widely used in factories, mines, harbors, warehoused, cargo storageareas and shops, essential in raising working efficiency and improving working conditions.
Model CD1 Electric Hoist has only normal speed, which can satisfy normal application.
Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

Characteristic

The standard lifting height is 6,9,12, 18,24,30 and 36 meters.
The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
The suitable rail for the low-headroom hoist is H-type rail, and I-type is also available.
The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
The normal travelling speed is 20m/min, and 12.5, 16, 25,32m/min by request.
The normal rial gauge of the double-grider hoist is 1200, 1500, 1800, 2100 and 2300mm.
The normal travelling speed of this kind of hoist is 20m/min, and 30, 45m/min by request.

Product Features

Strong Lifting Capacity

The CD1 electric hoist is designed for medium to heavy-duty lifting applications and can handle various load capacities.

Durable Wire Rope System

The high-strength steel wire rope provides reliable lifting performance and long service life.

Powerful Motor Performance

The high-efficiency motor ensures smooth and stable lifting operation with improved work efficiency.

Reliable Braking System

The hoist is equipped with an advanced braking system that ensures immediate stopping when power is cut off.

Smooth Operation

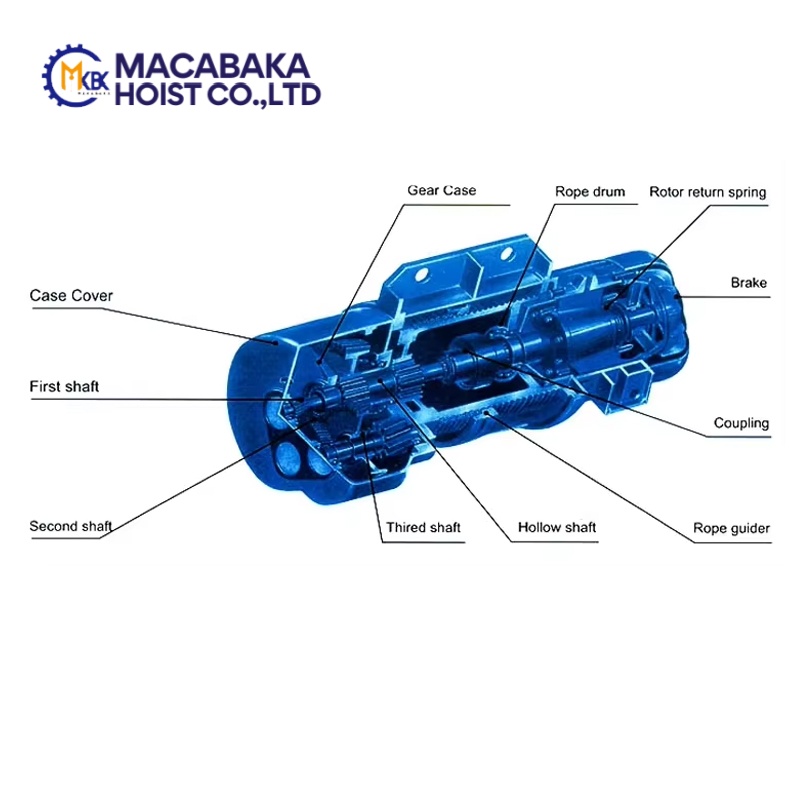

Precision gear transmission ensures stable lifting performance and reduces vibration during operation.

Wide Industrial Applications

The hoist can be installed on overhead cranes, gantry cranes, and I-beams for various lifting and material handling tasks.

1. What is a CD1 wire rope electric hoist used for?

The CD1 wire rope electric hoist is mainly used for lifting and transporting heavy loads in factories, warehouses, workshops, construction sites, and crane systems.

2. What lifting capacities are available?

The CD1 wire rope electric hoist is available in capacities ranging from 0.5 ton to 10 ton.

3. Can the lifting height be customized?

Yes, the standard lifting heights are 6 m, 9 m, or 12 m, but other lifting heights can be customized according to customer requirements.

4. Can the hoist be used with crane systems?

Yes, the CD1 electric hoist is commonly installed on overhead cranes, gantry cranes, or I-beams with electric trolleys.

5. What type of wire rope is used?

The hoist uses high-strength steel wire rope designed for durability and heavy load lifting.

6. Do you provide OEM services?

Yes, OEM services are available, including customized logo, product color, packaging, and branding according to customer requirements.
