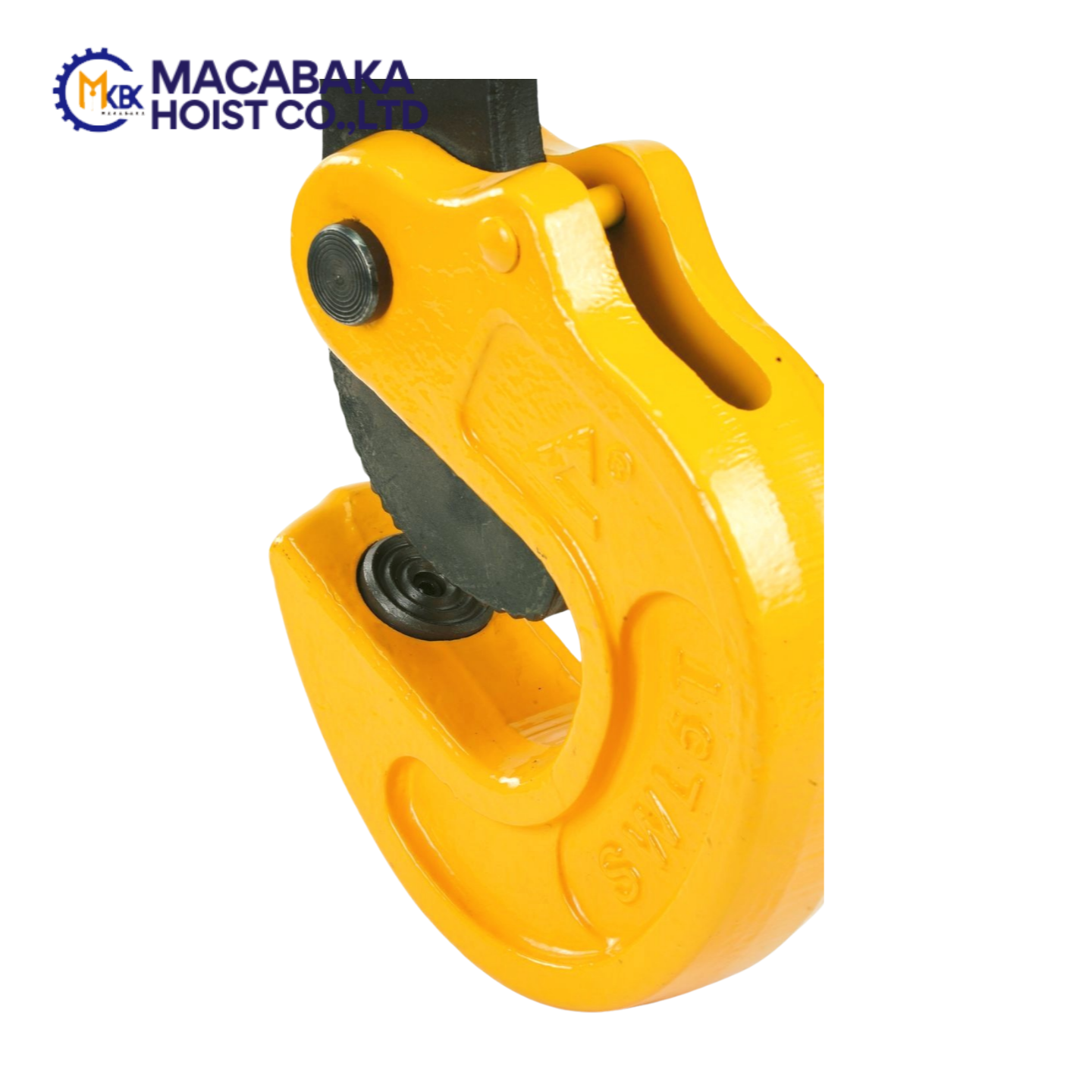

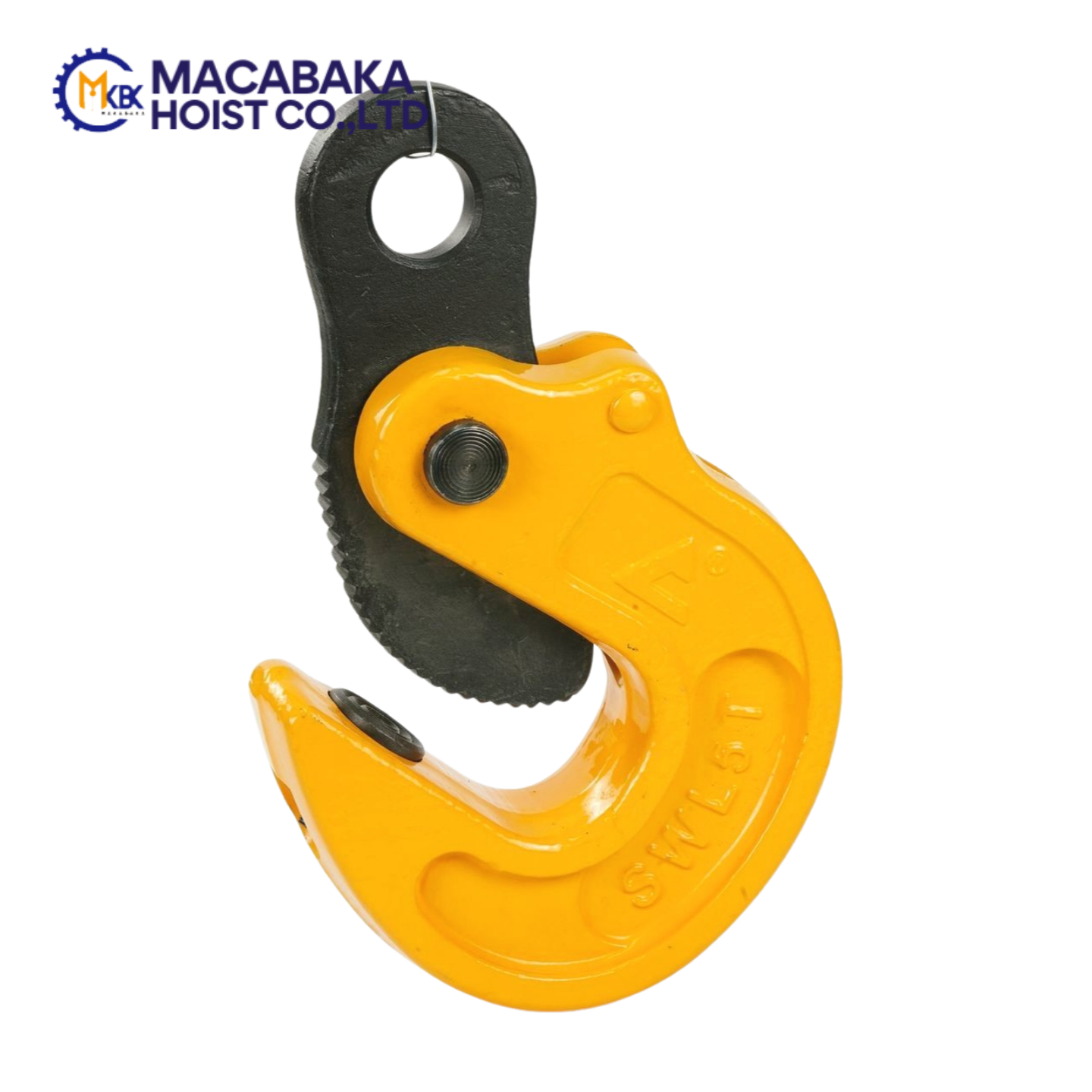

The Reversal Lifting Clamps (DFM Type) are specially designed for lifting, turning, and positioning steel plates. They are ideal for applications where plates need to be rotated from horizontal to vertical or vice versa.
Widely used in steel fabrication, shipbuilding, and heavy industry, these clamps enable safe and efficient plate handling during welding, cutting, and assembly processes. The clamp securely grips the plate and allows controlled rotation, improving productivity and safety.
Manufactured from high-strength alloy steel and equipped with a reliable locking mechanism, the DFM type lifting clamp ensures stable performance and long service life in demanding working environments.

Product Features

Plate Turning Function

Allows safe and controlled rotation of steel plates from horizontal to vertical positions.

Strong Clamping Force

Provides secure grip on plates during lifting and turning operations.

High Strength Alloy Steel

Manufactured from durable alloy steel for high load capacity and long service life.

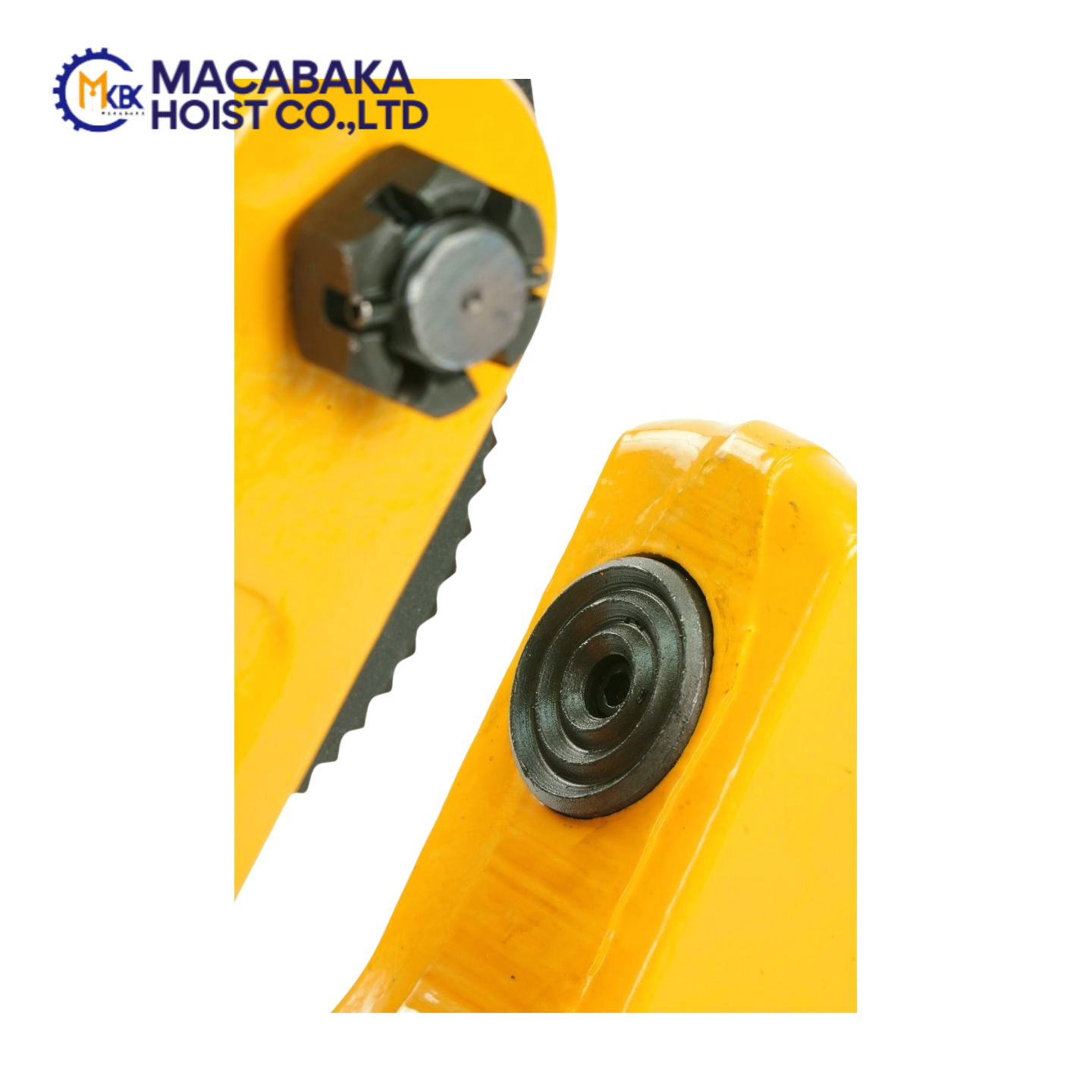

Reliable Safety Locking System

Ensures the plate remains securely clamped throughout the operation.

Easy Operation

Simple structure allows convenient handling and improved work efficiency.

Wide Application Range

Suitable for fabrication workshops, shipyards, and heavy industrial applications.

Model	Capacity (Ton)	Plate Thickness (mm)	Jaw Opening (mm)	Net Weight (kg)
DFM-0.8	0.8	0–16	0–16	3
DFM-1	1	0–20	0–20	4
DFM-2	2	0–30	0–30	6
DFM-3	3	0–40	0–40	10
DFM-5	5	0–50	0–50	16
Note: 1, Designed for lifting and turning steel plates 2, Ensure proper clamping before operation 3, Customized specifications are available upon request

Q1: What is the main function of DFM type lifting clamps?

A: They are used for lifting and rotating steel plates from horizontal to vertical positions.

Q2: What is the capacity range?

A: The capacity ranges from 0.8 ton to 5 tons.

Q3: What materials are the clamps made of?

A: They are made from high-strength alloy steel for durability and safety.

Q4: Does the clamp have a safety mechanism?

A: Yes, it is equipped with a locking system to ensure secure gripping during operation.

Q5: Can the clamp be used alone?

A: Yes, it is designed to be used individually for plate handling.

Q6: Where are these clamps commonly used?

A: They are widely used in steel fabrication, shipbuilding, construction, and heavy industry.
